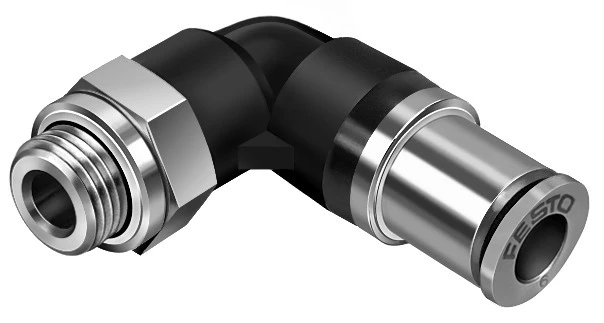

Push-in L-fitting, self-sealing, QSMKL-G1/8-4

Specifications • Push-in L-fitting, self-sealing QSKL/QSMKL, Rotatable, Male thread with external hex • Size Mini • Nominal size 1.5 mm • Tubing insertion depth 12.7 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Design L-shape • Size of pack 1 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa • Temperature-dependent operating pressure -0.95 bar ... 14 bar • Temperature-dependent operating pressure -13.775 psi ... 203 psi • Pneumatic connection, port 1 Male thread G1/8 • Pneumatic connection, port 2 For tubing outside diameter of 4 mm • Ambient temperature -10 °C - 80 °C
