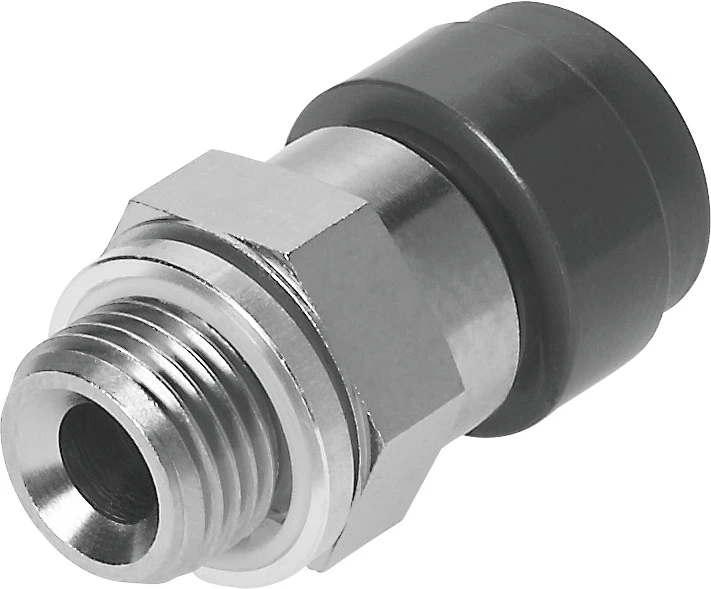

Push-in fitting, QS-V0-G3/8-10

Specifications • Push-in fittings QS-V0, resistant to welding spatter, Male thread with external hex, G thread with sealing ring • Size Standard • Nominal size 9 mm • Fire test material UL94 V-0 (housing), UL94 V-0 (releasing ring) • Type of seal on screwed plug Sealing ring • Design Straight design • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 1 MPa • Operating pressure complete temperature range -0.95 bar ... 10 bar • Operating pressure complete temperature range -13.775 psi ... 145 psi • Note on operating pressure Water: max. 0.6 MPa at max. 50°C • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
