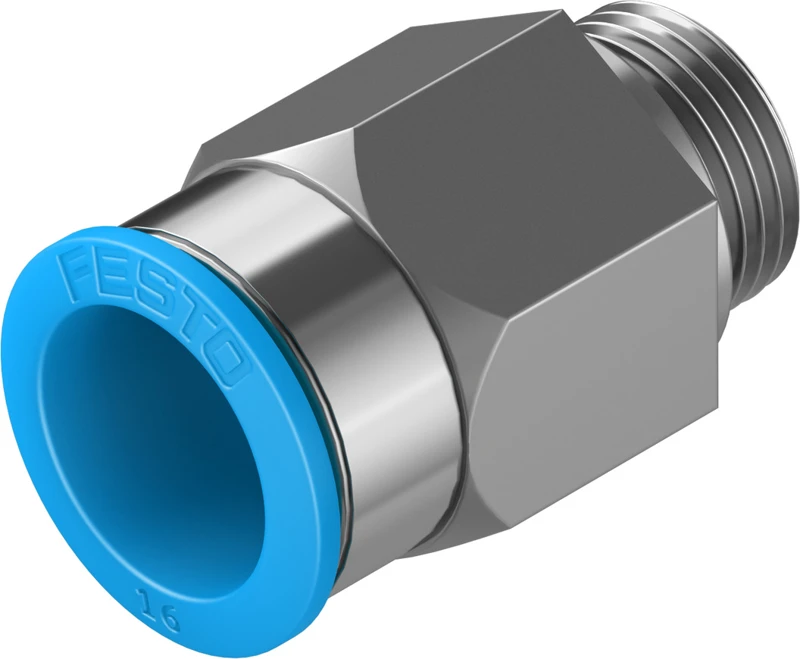

Push-in fitting, QS-G3/8-16
SKU: 186347
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Solenoid valves VUVS/Valve manifold assembly VTUS
• Manifold block, size 20
• Push-in fitting with external hex, Connecting thread G3/8 for tubing O.D. 16 mm
• Size Standard
• Nominal size 11 mm
• Type of seal on screwed plug Sealing ring
• Mounting position optional
• Design Straight design
• Size of pack 1
• Design Push-pull principle
• Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa
• Operating pressure complete temperature range -0.95 bar ... 6 bar
• Operating pressure complete temperature range -13.775 psi ... 87 ps
Buy currently uses Select Automation shop pricing and checkout.
Push-in fitting QS
• Standard series
• Wide range of variants: wide selection for maximum flexibility in standard applications
• PBT and nickel-plated brass
• Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/QS
• Straight shape, L-shape, T-shape, at 45° angle, X-shape, Y-shape, push-in bulkhead connector
