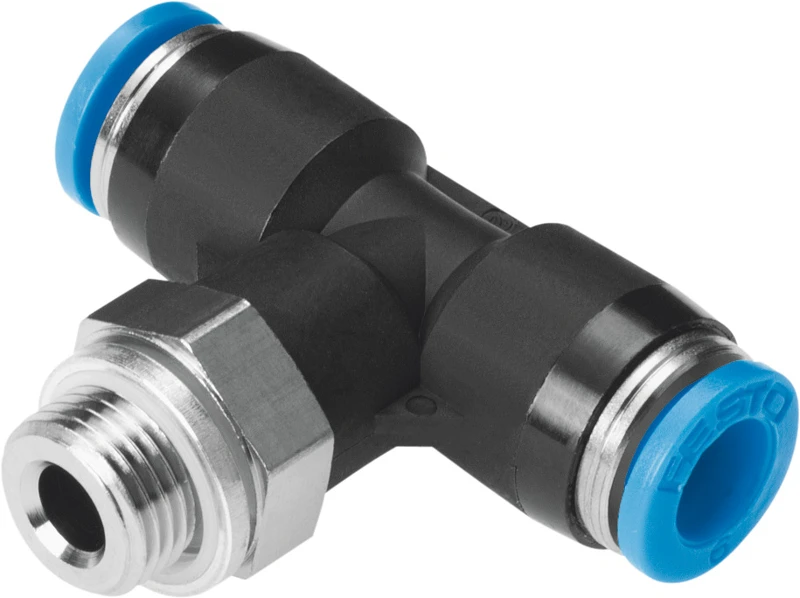

Push-in T-fitting, QST-G3/8-16

Specifications • Push-in fittings QS, standard, Push-in T-fitting QST Male thread with external hex, rotatable • Pneumatic connection, port 1 Male thread G3/8 • Pneumatic connection, port 2 For tubing outside diameter of 16 mm • Temperature-dependent operating pressure -0.95 bar - 14 bar • Ambient temperature -10 °C - 80 °C • Size Standard • Nominal size 11 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Design T-shape • Size of pack 1 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi
