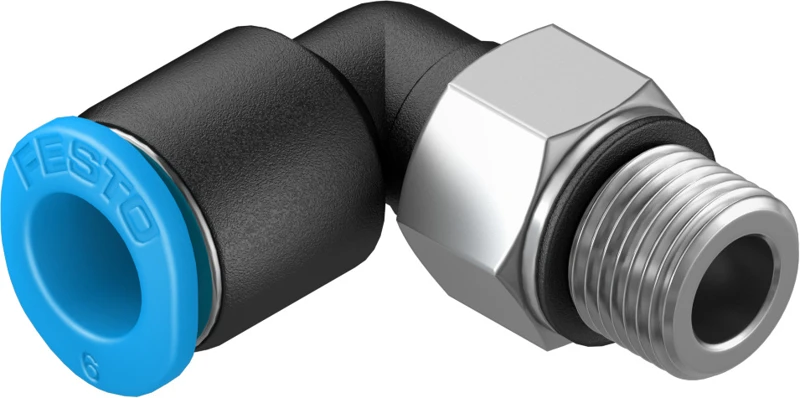

Push-in L-fitting, mini series, QSML-M7-6

Specifications • Push-in fittings QSM, mini series • Size Mini • Nominal size 2.4 mm • Type of seal on screwed plug Sealing ring • Mounting position optional • Design L-shape • Size of pack 10 • Design Push-pull principle • Operating pressure complete temperature range -0.095 MPa ... 0.6 MPa • Operating pressure complete temperature range -0.95 bar ... 6 bar • Operating pressure complete temperature range -13.775 psi ... 87 psi • Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa • Temperature-dependent operating pressure -0.95 bar ... 14 bar • Temperature-dependent operating pressure -13.775 psi ... 203 psi
