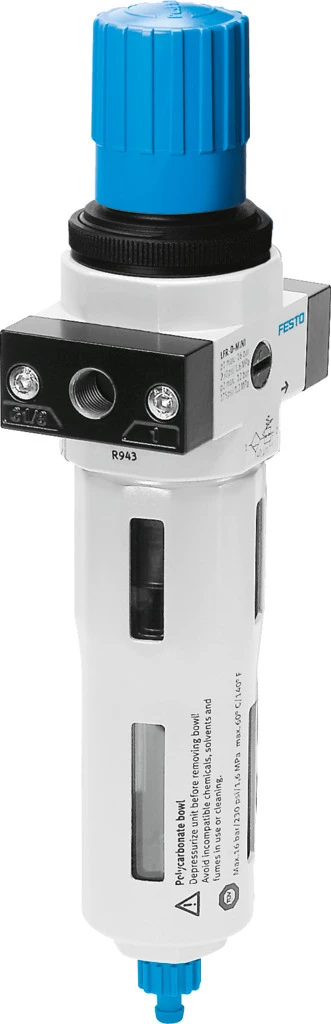

Filter regulator, LFR-1/2-D-O-MAXI

Specifications • Filter regulator LFR, LFRS • Size Maxi • Series D • Actuator lock Rotary knob with detent • Mounting position Vertical +/-5° • Grade of filtration 40 µm • Condensate drain Manually rotating • Design Filter regulator without pressure gauge • Max. condensate volume 80 ml • Bowl guard Metal bowl guard • Symbol 00991590 • Pressure gauge (ANALOG) or Pressure display (DIGITAL) Prepared for G1/4 • Operating pressure 1 bar ... 16 bar • Pressure regulation range 0.5 bar ... 12 bar • Pneumatic connection, port 1 G1/2 • Standard nominal flow rate (standardised to DIN 1343) 9400 l/min
