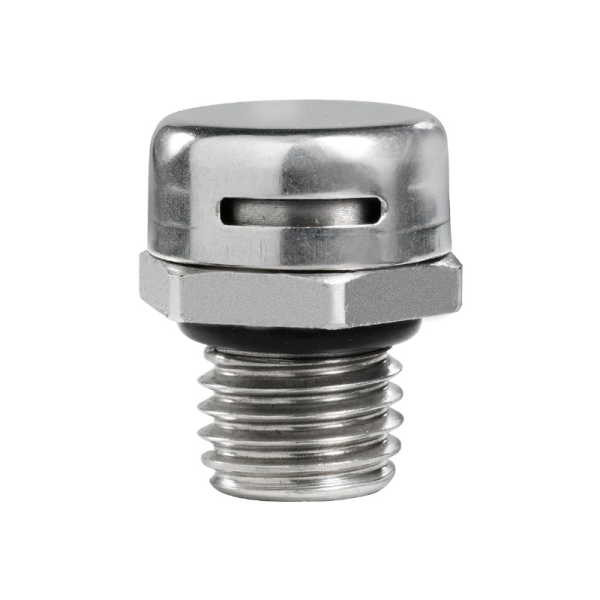

      Compensating element, straight, M 12, 10 mm, Stainless steel (303)

      SKU: 1868550000

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request Description: High-quality parts like the DAE (ventilation element) Compensating Element M 12 (1868550000) are made to guarantee efficient drainage and ventilation in electrical enclosures. Stainless steel 1.4305 (303), used to create this compensating element, offers exceptional durability and corrosion resistance. It is especially helpful in preserving ideal ventilation and avoiding moisture build-up, both of which are essential for the durability and dependability of electrical components. Your electrical installations will be protected and function as intended with the DAE M 12, which is appropriate for a variety of industrial applications.
      1868550000
      Alternative image 1
      Specifications: Component: Compensating element for ventilation and drainage. Series: DAE. Material: Stainless steel 1.4305 (303). Thread Size: M 12. Height: 10 mm. Protection Class: IP66, IP68, IP69K. Temperature Range: -40°C to +105°C. Installation: Designed for straight installation. Suitable for bottom-side installation with vertical alignment. Flow Rate: 0.4 l/min at 0.1 bar ΔP, up to 5.0 l/min at 1 bar ΔP. Standards: REACH conforms. RoHS conforms.
