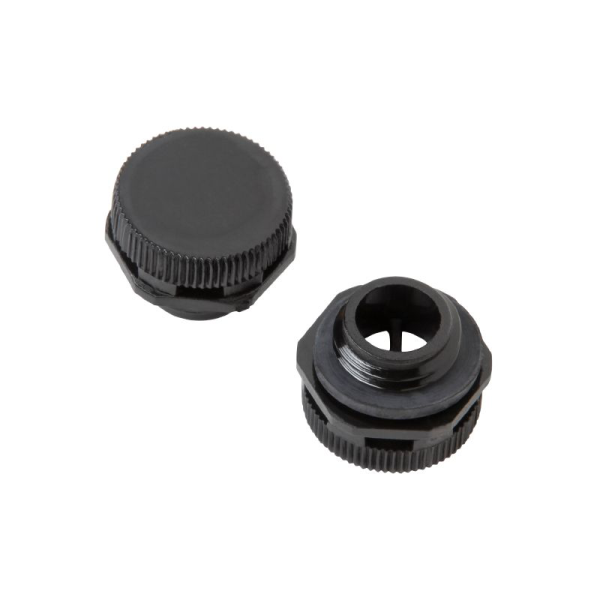

      Compensating element, straight, M 12, 6 mm, Polyamide 6

      SKU: 1868560000

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request Description: High-quality parts like the DAE (ventilation element) Compensating Element M 12 (1868560000) are made to guarantee efficient drainage and ventilation in electrical enclosures. Made of polyamide 6, this compensatory element offers exceptional resistance to environmental conditions and durability. It is especially helpful in preserving ideal ventilation and avoiding moisture build-up, both of which are essential for the durability and dependability of electrical components. Your electrical installations will be protected and function as intended with the DAE M 12, which is appropriate for a variety of industrial applications.
      1868560000
      Alternative image 1
      Specifications: Component: Compensating element for ventilation and drainage. Series: DAE. Material: Polyamide 6. Thread Size: M 12. Height: 6 mm. Protection Class: IP66, IP68, IP69K. Temperature Range: -40°C to +105°C. Installation: Designed for straight installation. Suitable for bottom-side installation with vertical alignment. Flow Rate: 0.8 l/min at 0.1 bar ΔP, up to 7.6 l/min at 1 bar ΔP. Standards: REACH conforms. RoHS conforms.
