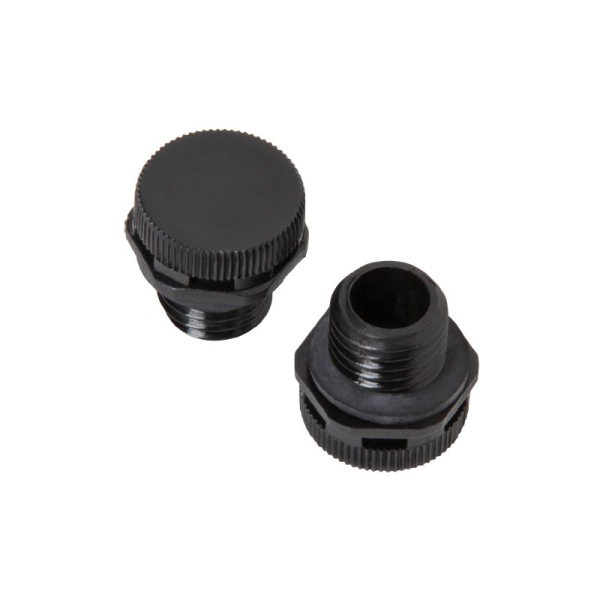

Compensating element, straight, M 12, 10 mm, Polyamide 6
SKU: 1868570000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
High-quality parts like the DAE (ventilation element) Compensating Element M 12 (1868570000) are made to guarantee efficient drainage and ventilation in electrical enclosures.
Made of polyamide 6, this compensatory element offers exceptional resistance to environmental conditions and durability.
It is especially helpful in preserving ideal ventilation and avoiding moisture build-up, both of which are essential for the durability and dependability of electrical components.
Your electrical installations will be protected and function as intended with the DAE M 12, which is appropriate for a variety of industrial applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Component: Compensating element for ventilation and drainage.
Series: DAE.
Material: Polyamide 6.
Thread Size: M 12.
Height: 10 mm.
Protection Class: IP66, IP68, IP69K.
Temperature Range: -40°C to +105°C.
Installation:
Designed for straight installation.
Suitable for bottom-side installation with vertical alignment.
Flow Rate: 0.8 l/min at 0.1 bar ΔP, up to 7.6 l/min at 1 bar ΔP.
Standards:
REACH conforms.
RoHS conforms.
