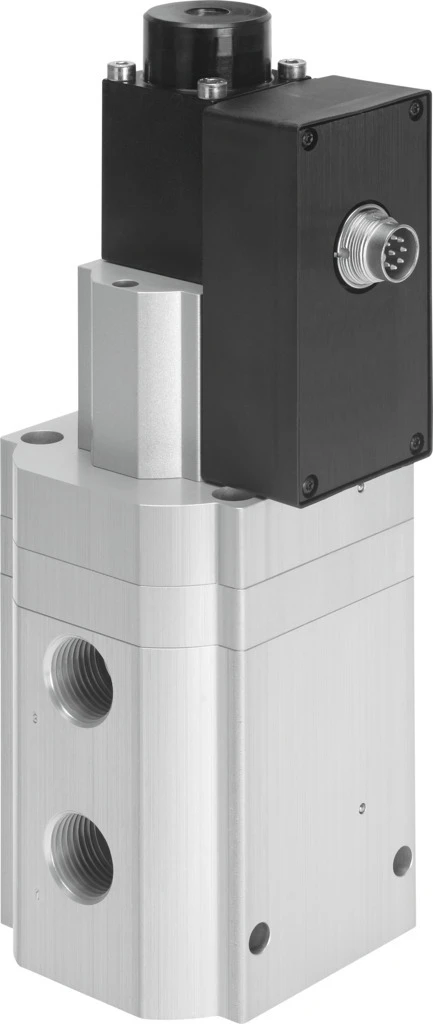

Proportional-pressure regulator, MPPES-3-1/2-10-010

Specifications • Proportional-pressure regulators MPPES • Nominal size, supply 11 mm • Nominal size, exhaust 12 mm • Type of actuation Electric • Sealing principle Soft • Mounting position optional • Design Piloted piston regulator • Short circuit current rating For all electrical connections • Safety instructions Safety position MPPES: if the power supply cable is interrupted, the output pressure drops to 0 bar. • Symbol 00995304 • Reverse polarity protection For all electrical connections • Valve function 3-way proportional-pressure regulator, closed • Pneumatic connection, port 1 G1/2 • Pressure regulation range 0 bar - 10 bar • Inlet pressure 1 11 bar - 12 bar
