CLI C 02-21 SDR SG
SKU: 1873340000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

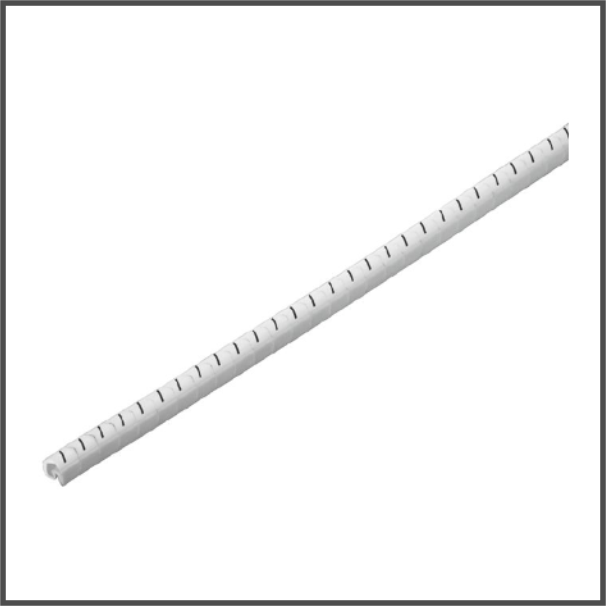

CLI C 02-21 SDR SG:
CLI C conductor markers are used to mark disconnected conductors.
Conductor cross-sections between 0.5 mm² and a maximum of 70 mm² can be labeled in four different sizes.
The markers are already printed and ready to use.
Indiv
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 3.5 mm.
Depth (inches): 0.138 inch.
Height: 21 mm.
Height (inches): 0.827 inch.
Width: 3.4 mm.
Width (inches): 0.134 inch.
Net weight: 0.18 g.
Temperatures:
Operating temperature range: 80 °C.
Environmental Product Compliance:
REACH SVHC: /.
General data:
Colour: To customer specification.
Colour of printing: black.
Halogen: Yes.
Material: PVC, soft, without Cadmium.
Operating temperature range: 80 °C.
Operating temperature range, max.: 80 °C.
Orientation of print: horizontal.
Printed characters: To customer specification.
Printing: Custom printing.
Printing method: Ink jet technology.
Type of printing: To customer specification.
UL 94 flammability rating: V-0.
Version: Loop.
Width: 3.4 mm.
Conductor and cable markers:
Conductor cross-section, max.: 1.5 mm².
Conductor cross-section, min.: 0.2 mm².
Conductor O.D.: 1.3 - 3 mm.
Conductor O.D., max.: 3 mm.
Conductor O.D., min.: 1.3 mm.
Cross-section for connected wire: 0.2 – 1.5 mm².
Halogen: Yes.
