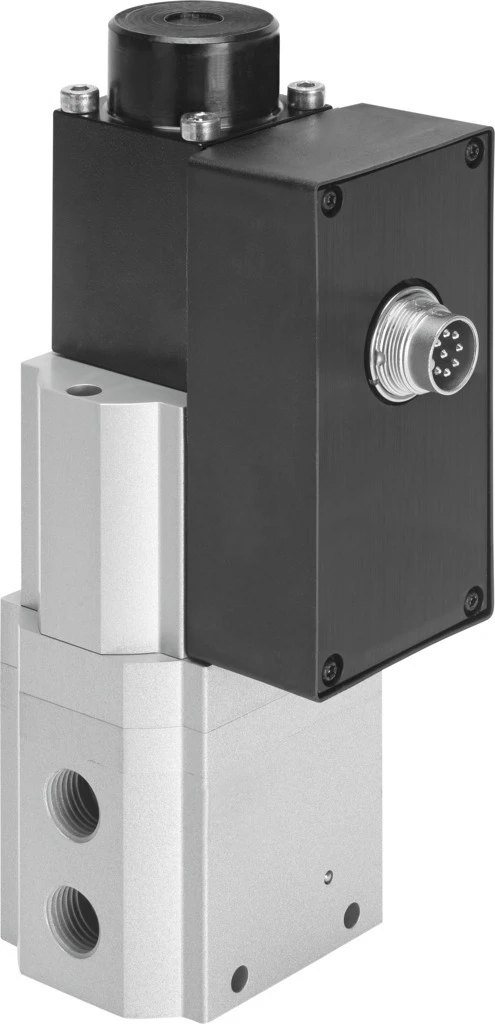

Proportional-pressure regulator, MPPES-3-1/8-2-420
SKU: 187351
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Proportional-pressure regulators MPPES
• Nominal size, supply 3 mm
• Nominal size, exhaust 2 mm
• Type of actuation Electric
• Sealing principle Soft
• Mounting position optional
• Design Directly actuated piston regulator
• Short circuit current rating For all electrical connections
• Safety instructions Safety position MPPES: if the power supply cable is interrupted, the output pressure drops to 0 bar.
• Symbol 00995305
• Reverse polarity protection For all electrical connections
• Valve function 3-way proportional-pressure regulator, closed
• Pneumatic connection, port 1 G1/8
• Pressure regulation range 0 bar - 2 bar
• Inlet pressure 1 3 bar - 4 bar
Buy currently uses Select Automation shop pricing and checkout.
Proportional pressure regulator MPPES
• Directly actuated (G1/8), pilot actuated (G1/4, G1/2)
• Setpoint value input as analogue voltage or current signal
• Choice of pressure regulation ranges
• Available with setpoint module
• Electrical connection via plug, round design to DIN 45326, M16 x 0.75, 8-pin
• With proportional solenoid
