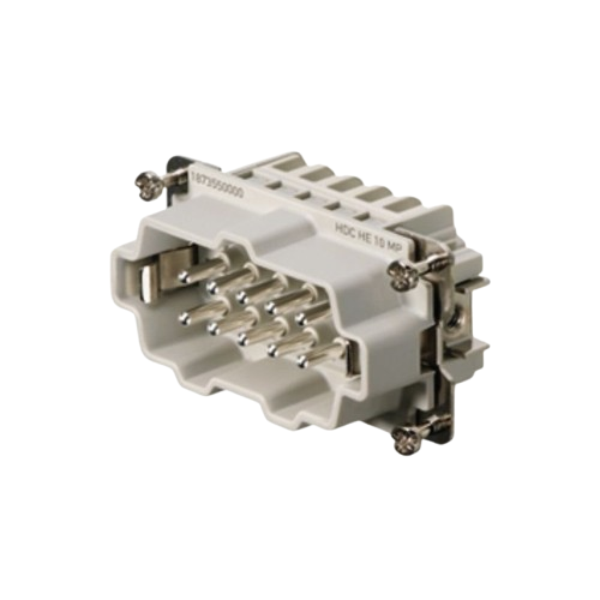

HDC HE 10 MP
SKU: 1873550000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
HDC HE 10 MP:
The PUSH IN connection is a direct-insert connector.
The pre-processed wire can be placed straight into the wire connection, eliminating the need for equipment.
Number of poles: 10.
Rated current: 16 A.
Rated voltage is 500 volts.
Nominal voltage, according to UL/CSA: 600 V AC/DC.
Push-in technology.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 64 mm.
Depth (inches): 2.52 inch
Height: 34.3 mm.
Height (inches): 1.35 inch.
Width: 34 mm.
Width (inches): 1.339 inch.
Net weight: 56 g.
Temperatures:
Limit temperature: -40 °C - 125 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
Chemical resistance:
Substance: Acetone.
Chemical resistance: Resistant.
Substance: Ammonia, watery.
Chemical resistance: Conditionally resistant.
Substance: Petrol.
Chemical resistance: Resistant.
Substance: Benzene.
Chemical resistance: Resistant.
Substance: Diesel oil.
Chemical resistance: Conditionally resistant.
Substance: Acetic acid, concentrated.
Chemical resistance: Resistant.
Substance: Potassium hydroxide.
Chemical resistance: Conditionally resistant.
Substance: Methanol.
Chemical resistance: Conditionally resistant.
Substance: Motor oil.
Chemical resistance: Conditionally resistant.
Substance: Lye, diluted.
Chemical resistance: Resistant.
Substance: Hydrochlorofluorocarbons.
Chemical resistance: Conditionally resistant.
Substance: Outdoor use.
Chemical resistance: Conditionally resistant.
eshop_Filter_00_General:
Weidmüller class short: Contact.
Weidmüller class target channel: Contact insert (industry plug-in connectors).
eshop_Filter_01_02_Connectors:
Category: Miscellaneous.
Product type: Insert.
Dimensions:
Height of socket: 34.3 mm.
Total length base: 64 mm.
Width: 34 mm.
General data:
BG: 4.
Colour: beige.
Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified).
Insulating material group: IIIa.
Insulation strength: 1010 Ω.
Low smoke acc. DIN EN 45545-2: Yes.
Material: Copper alloy.
Number of poles: 10.
Plugging cycles, silver: ≥ 500.
Pollution severity: 3.
Rated current (DIN EN 61984): 16 A.
Rated impulse voltage (DIN EN 61984): 6 kV.
Rated voltage (DIN EN 61984): 500 V.
Rated voltage according to UL/CSA: 600 V AC/DC.
Series: HE.
Size: 4.
Surface finish: Silver passivated.
Type: Male.
Type of connection: PUSH IN.
UL 94 flammability rating: V-0.
Volume resistance: ≤2 mΩ.
Connection data PE:
Blade size, slotted (PE connection): SD 0.8 x 4.0.
Connection type PE: Screw connection.
Fixing screw: M 4.
Rated cross-section: 4 mm².
Stripping length PE connection: 10 mm.
Tightening torque, max. PE connection: 1.5 Nm.
Tightening torque, min. PE connection: 1.2 Nm.
Wire cross section, AWG (PE), max.: AWG 12.
Wire cross section, AWG (PE), min.: AWG 20.
Version:
BG: 4.
Blade size, slotted (screw connection): SD 0.5 x 3.0.
Conductor cross-section, max.: 2.5 mm².
Conductor cross-section, min.: 0.5 mm².
Material: Copper alloy.
Size: 4.
Stripping length, rated connection: 10 mm.
Surface finish: Silver passivated.
Type of connection: PUSH IN.
Volume resistance: ≤2 mΩ.
Wire connection cross section, finely stranded, max.: 2.5 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: 2.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm².
Wire cross-section, solid, max.: 2.5 mm².
Wire cross-section, solid, min.: 0.5 mm².
