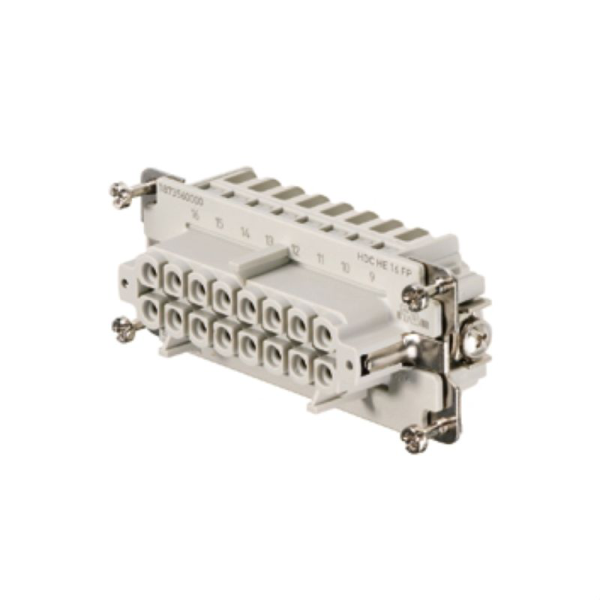

HDC HE 16 FP
SKU: 1873560000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC HE 16 FP:
The screw connection level is designed to function as a screw element.
All screw connectors (except size 1) include a wire protecting spring.
Number of poles: 16.
Rated current: 16 A.
Rated voltage is 500 volts.
Nominal voltage, according to UL/CSA: 600 V AC/DC.
Screw connections.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 84.5 mm.
Depth (inches): 3.327 inch.
Height: 33.8 mm.
Height (inches): 1. 331 inch.
Width: 34 mm.
Width (inches): 1.339 inch.
Net weight: 84 g.
Temperatures:
Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3.
SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
Chemical resistance:
Substance: Acetone.
Chemical resistance: Resistant.
Substance: Ammonia, watery.
Chemical resistance: Conditionally resistant.
Substance: Petrol.
Chemical resistance: Resistant.
Substance: Benzene.
Chemical resistance: Resistant.
Substance: Diesel oil.
Chemical resistance: Conditionally resistant.
Substance: Acetic acid, concentrated.
Chemical resistance: Resistant.
Substance: Potassium hydroxide.
Chemical resistance: Conditionally resistant.
Substance: Methanol.
Chemical resistance: Conditionally resistant.
Substance: Motor oil.
Chemical resistance: Conditionally resistant.
Substance: Lye, diluted.
Chemical resistance: Resistant.
Substance: Hydrochlorofluorocarbons.
Chemical resistance: Conditionally resistant.
Substance: Outdoor use.
Chemical resistance: Conditionally resistant.
eshop_Filter_01_02_Connectors:
Category: Miscellaneous.
Product type: Insert.
Dimensions:
Height of plug: 33.8 mm.
Total length base: 84.5 mm.
Width: 34 mm.
General data:
BG: 6.
Colour: beige.
Conductor cross-section: 2.5 mm².
Insulating material: PC glass-fibre reinforced (UL-listed and railway-certified).
Insulating material group: IIIa.
Insulation strength: 1010 Ω.
Low smoke acc. DIN EN 45545-2: Yes.
Material: Copper alloy.
Max. torque for main contact: 0.55 Nm.
Min. torque for main contact: 0.5 Nm.
Number of poles: 16.
Plugging cycles, silver: ≥ 500.
Pollution severity: 3.
Rated current (DIN EN 61984): 16 A.
Rated impulse voltage (DIN EN 61984): 6 kV.
Rated voltage (DIN EN 61984): 500 V.
Rated voltage according to UL/CSA: 600 V AC/DC.
Series: HE.
Size: 6.
Surface finish: Silver passivated.
Type: Female.
Type of connection: PUSH IN.
UL 94 flammability rating: V-0.
Volume resistance: ≤2 mΩ.
Connection data PE:
Blade size, slotted (PE connection): SD 0.8 x 4.0.
Connection type PE: Screw connection.
Fixing screw: M 4.
Rated cross-section: 4 mm².
Stripping length PE connection: 10 mm.
Tightening torque, max. PE connection: 1.5 Nm.
Tightening torque, min. PE connection: 1.2 Nm.
Wire cross section, AWG (PE), max.: AWG 12.
Wire cross section, AWG (PE), min.: AWG 20.
Version:
BG: 6.
Blade size, slotted (screw connection): SD 0.5 x 3.0.
Conductor cross-section, max.: 2.5 mm².
Conductor cross-section, min.: 0.5 mm².
Material: Copper alloy.
Size: 6.
Stripping length, rated connection: 10 mm.
Surface finish: Silver passivated.
Type of connection: PUSH IN.
Volume resistance: ≤2 mΩ.
Wire connection cross section, finely stranded, max.: 2.5 mm².
Wire connection cross section, finely stranded, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 2.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: 0.5 mm².
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: 1.5 mm².
Wire cross-section, solid, max.: 2.5 mm².
Wire cross-section, solid, min.: 0.5 mm².
