CLI C 1-9 GE/SW 280-299 2-PAG RL
SKU: 1878260280
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

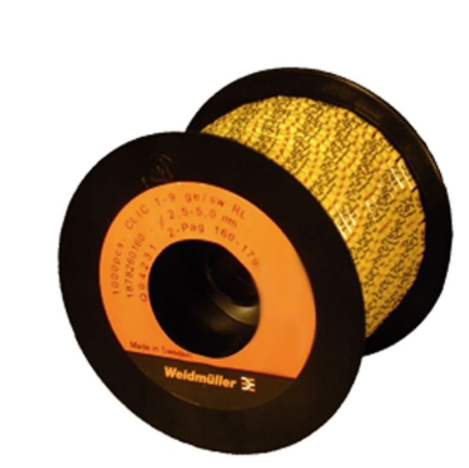

CLI C 1-9 GE/SW 280-299 2-PAG RL:
CLI C conductor markers are used to mark disconnected conductors.
Conductor cross-sections between 0.5 mm² and a maximum of 70 mm² can be labeled in four different sizes.
The markers are already printed and ready to use.
Individual labelling can be achieved by combining the individual markers.
dependable closed-end markers that can be mounted on disconnected wires.
A unique flexible bellow profile ensures a broad application range.
Quick and simple to fit, requiring little work.
Labelling is made simple with matching accessories.
Permanent, superior labelling.
High contrast for best reading clarity.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 5 mm.
Depth (inches): 0.197 inch.
Height: 9 mm.
Height (inches): 0.354 inch.
Width: 4.2 mm.
Width (inches): 0.165 inch.
Net weight: 0.157 g.
Temperatures:
Operating temperature range: -30 - 80 °C.
Environmental Product Compliance:
REACH SVHC: /.
General data:
Colour: Yellow.
Colour of printing: Black.
Halogen: Yes.
Insulation cross-section, max.: 5.
Material: PVC, soft, without Cadmium.
Material colour according to resistance code: 4.
Number of markers per combination: 1 Component part = Conductor and cable markers.
Number of markers per packaging unit:
Form of supply: Component part.
Operating temperature range: -30...80 °C.
Operating temperature range, max.: 80 °C.
Operating temperature range, min.: -30 °C.
Orientation of print: horizontal.
Printed characters: Numbers.
Printing method: hot-embossing.
Recommended industries: Process, Machinery.
Type of printing: Standard.
UL 94 flammability rating: V-0.
Width: 4.2 mm.
Conductor and cable markers:
Conductor cross-section, max.: 4 mm².
Conductor cross-section, min.: 1.5 mm².
Conductor O.D.: 2.5 - 5 mm.
Conductor O.D., max.: 5 mm.
Conductor O.D., min.: 2.5 mm.
Cross-section for connected wire: 1.5 - 4 mm².
Halogen: Yes.
