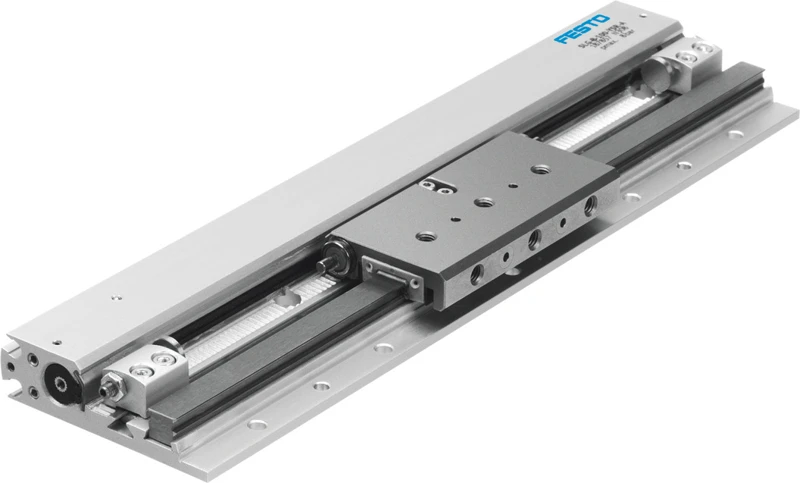

Linear drive, SLG-12- -
SKU: 187855
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Linear drive SLG, flat design
• Stroke 100 mm ... 700 mm
• Piston diameter 12 mm
• Cushioning Elastic cushioning rings/plates at both ends, Shock absorber, hard characteristic curve
• Mounting position optional
• Guide Recirculating ball bearing guide
• Max. number of intermediate positions 4
• Coupling design Positive-locking (slot)
• Position detection Via proximity switch
• Variants Pulling
• Operating pressure 2 bar ... 8 bar
• Mode of operation Double-acting
• Operating medium Compressed air to ISO 8573-1:2010 [7:-:-]
Buy currently uses Select Automation shop pricing and checkout.
Linear drive SLG
• Extremely flat drive with precision guide.
• Extremely flat design
• Highest precision thanks to integrated recirculating ball bearing guide
• Adjustable end stops
• Wide range of supply ports
• Piston ⌀ 8, 12 and 18
• Stroke lengths from 100 ... 900 mm
• Choice of two cushioning types: Elastic cushioning, Shock absorber
• Direct mounting via centring holes
• Slide with polished surface
• High load capacity
• Suitable for multiple-axis applications with other mini slides
• Available with intermediate position module
