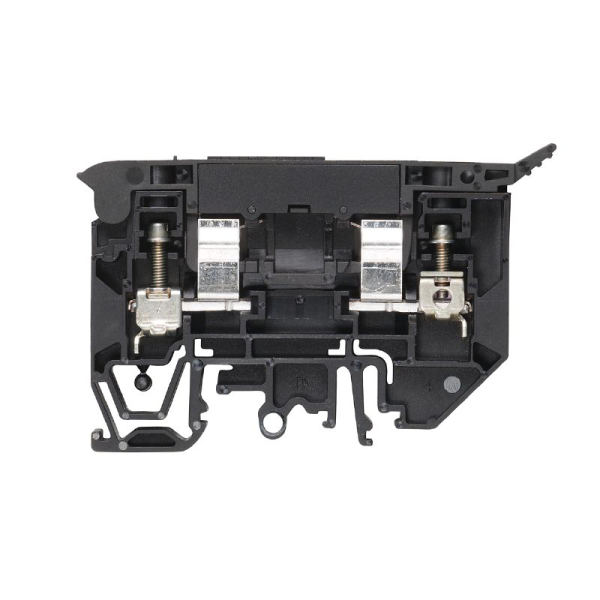

WSI 4/2/LD 60-150V AC/DC
SKU: 1880420000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Using a separate fuse to safeguard the feed-through connection is beneficial in some situations.
One terminal block bottom part with a fuse insertion carrier makes up a fuse terminal block.
The fuses range from screwable closures and flat plug-in fuses to pivoting fuse levers and pluggable fuse holders.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Fuse terminal, Screw connection, Fuse isolator, with LED, One end without connector, Screw connection.
Quantity: 25.
Depth: 53.5 mm.
Height: 81.6 mm.
Width: 9.1 mm.
Storage temperature: -25 °C...55 °C.
Continuous operating temp., min: -50 °C.
Continuous operating temp., max: 120 °C.
Material: Wemid.
Color: black.
UL 94 flammability rating: V-0.
Standards: IEC 60947-7-3.
Number of similar terminals: 1.
Open sides: right.
Type of mounting: Snap-on.
TS 35 offset: 25 mm.
System specifications:
End cover plate required.
Number of potentials: 1.
Number of levels: 1.
Number of clamping points per level: 2.
Number of potentials per tier: 1.
No Levels cross-connected internally.
No PE connection.
Rail: TS 35, TS 32.
No N-function.
No PE function.
No PEN function.
Rating data:
Rated cross-section: 4 mm².
Rated voltage: 150 V.
Rated voltage to adjoining terminal: 500 V.
Rated DC voltage: 150 V.
Rated current: 10 A.
Current at maximum wires: 6.3 A.
Volume resistance according to IEC 60947-7-x: 1 m Ω.
Rated impulse withstand voltage: 6 V.
Power loss in accordance with IEC 60947-7-x: 1.02 W.
