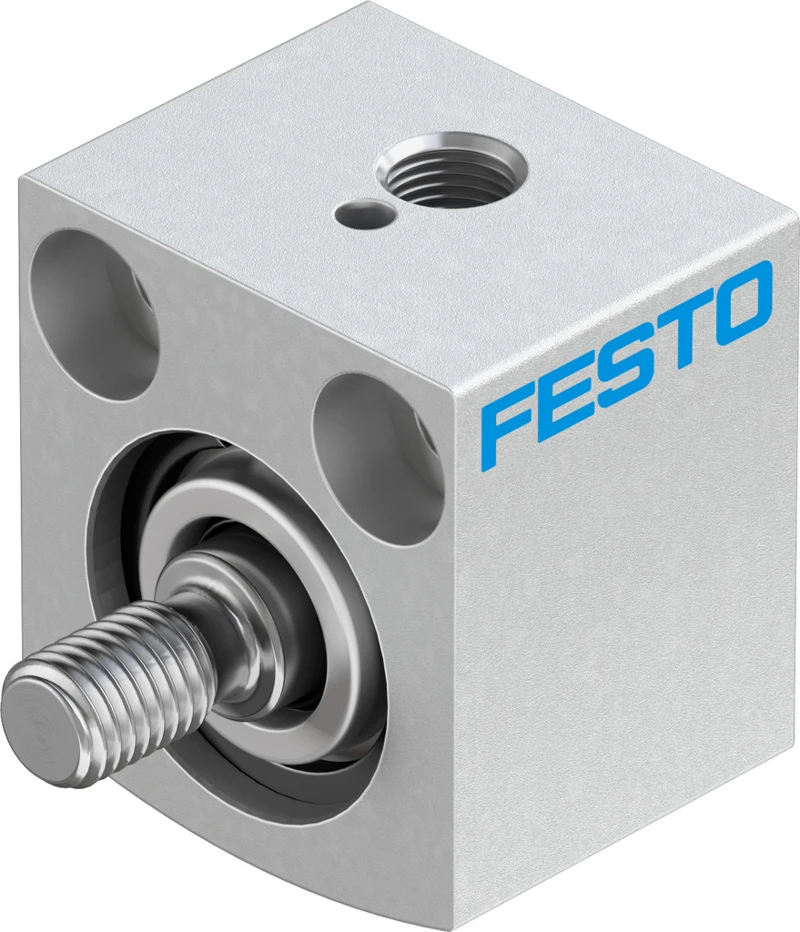

Short-stroke cylinders, AEVC-12-5-A-P
SKU: 188086
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Short-stroke cylinders, Basic design AEVC, single-acting
• Stroke 5 mm
• Piston diameter 12 mm
• Spring return force with retracted piston rod 4 N
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Single-acting, Pushing
• Design: Piston, Piston rod
• Position detection Without
Buy currently uses Select Automation shop pricing and checkout.
Short-stroke cylinders ADVC, AEVC, double-acting/single-acting
• High clamping forces in a compact size
• Mounting hole pattern to ISO 15552 from piston Ø 32 mm
• Application-oriented housing and piston rod variants
• Supply ports and profile slot for proximity sensors on one side
