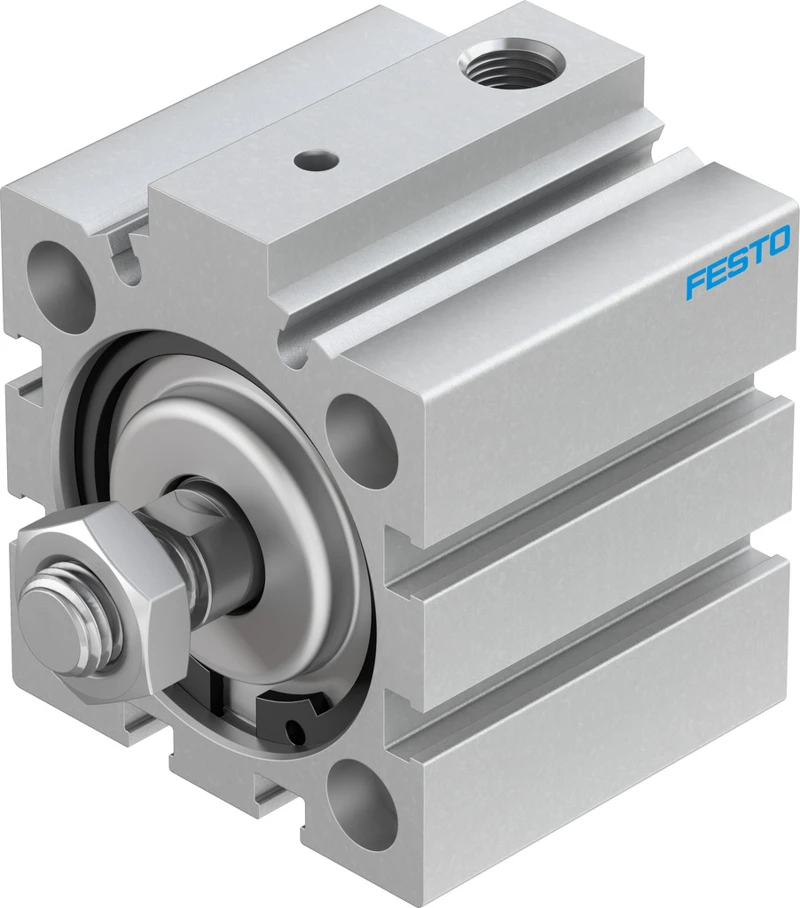

Short-stroke cylinder, AEVC-40-10-A-P-A
SKU: 188228
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Short-stroke cylinders ADVC/AEVC
• Mode of operation Pushing - Single-acting
• Piston diameter 40 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 707 N
• Stroke 10 mm
• Cushioning Elastic cushioning rings/plates at both ends
Buy currently uses Select Automation shop pricing and checkout.
Short-stroke cylinders ADVC/AEVC
• Short-stroke cylinders are ideal for clamping tasks with short strokes, e.g. in machining jigs.
• Rapid response when pressure is applied
• Large clamping forces in comparison to their size
• Minimal installation space
• Integrated sensor slots for contacting or contactless proximity sensors
• Hole pattern for mounting as per VDMA 24562 for @ 32 ... 100 mm
• Diameter 4 ... 100 mm
• Stroke length 2.5 ... 25 mm
