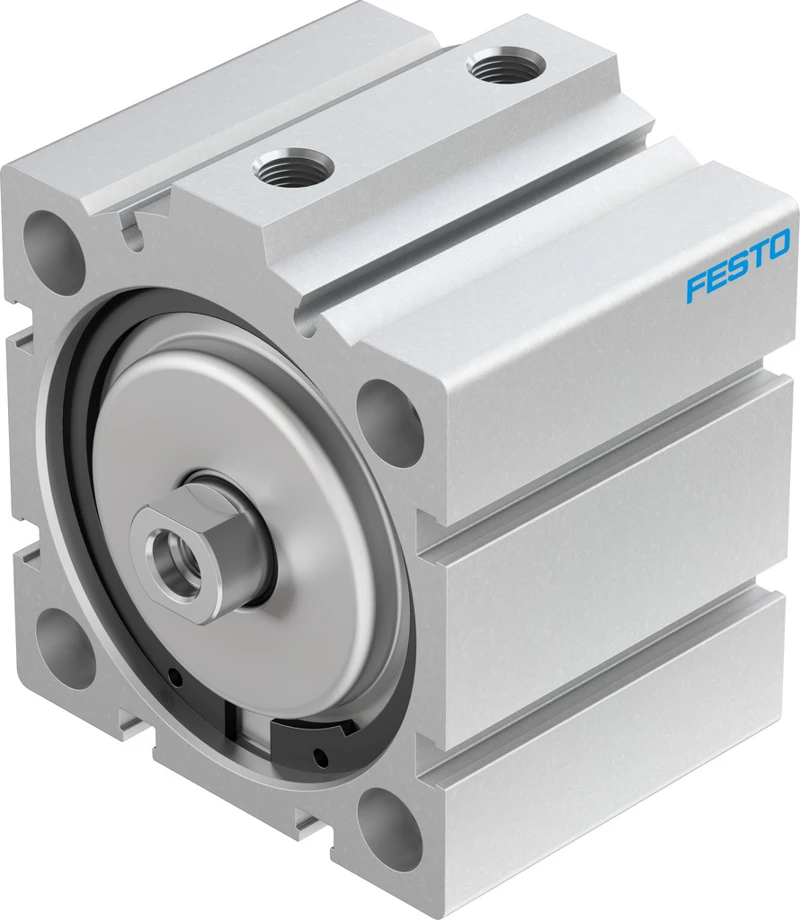

Short-stroke cylinders, ADVC-63-20-I-P
SKU: 188290
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Short-stroke cylinders, Basic design ADVC, double-acting
• Stroke 20 mm
• Piston diameter 63 mm
• Based on standard ISO 6431, Hole pattern, VDMA 24562
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Mode of operation Double-acting
• Design: Piston, Piston rod
• Position detection Without
Buy currently uses Select Automation shop pricing and checkout.
Short-stroke cylinders ADVC, AEVC, double-acting/single-acting
• High clamping forces in a compact size
• Mounting hole pattern to ISO 15552 from piston Ø 32 mm
• Application-oriented housing and piston rod variants
• Supply ports and profile slot for proximity sensors on one side
