CLI T 1-30
SKU: 1889560000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

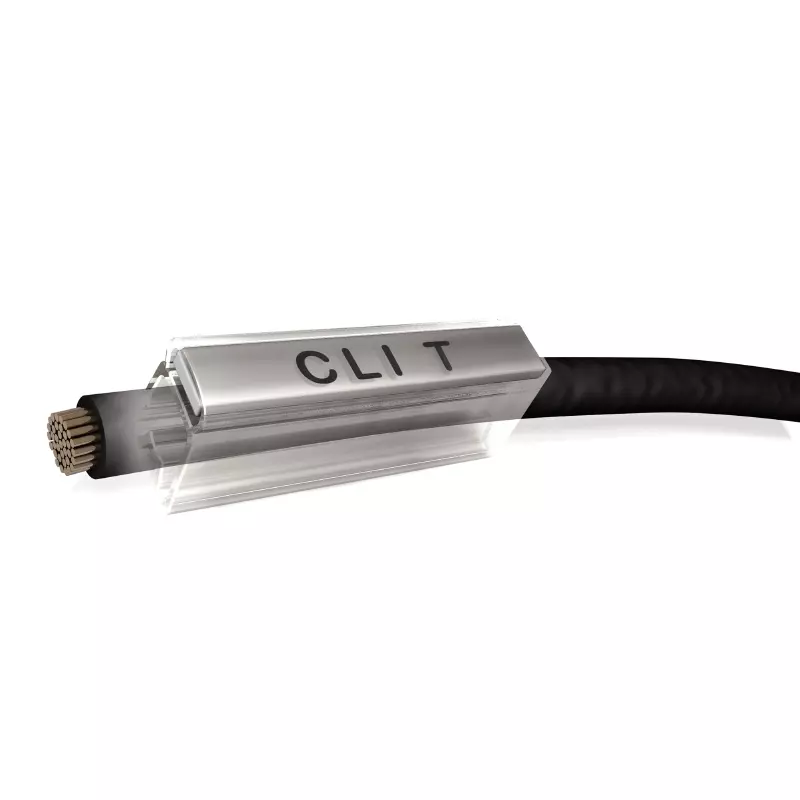

The CLI T sleeve is a high-quality, transparent sleeve for labelling conductors and cables with cross-sections up to 75 mm.
The CLI T sleeve is available in four lengths, making it easy to label with long character strings.
The translucent sleeve efficiently protects the inlay tag from outside influences.
The TM-I marker from the Multi Card and Multi Mark portfolio is appropriate for use as an inlay tag.
Buy currently uses Select Automation shop pricing and checkout.
Advantages:
Wider cross-section range per sleeve.
A special flexible bellow profile ensures a wide application range.
Easy insertion of the TM-I tags into the sleeve pocket before or after connecting the conductor.
Available in five lengths.
Not suitable for labelling with P-Ink or STI pen.
Specifications:
Version: Cable Line, Socket.
Quantity: 200.
Height: 30 mm.
Width: 5 mm.
Operating temperature range: -30...80 °C.
Colour: Transparent.
Halogen.
Material: PVC.
UL 94 flammability rating: V-0.
Conductor and cable markers:
Conductor O.D.: 2.5 - 5 mm.
Conductor O.D., max.: 5 mm.
Conductor O.D., min.: 2.5 mm.
Conductor cross-section, max.: 6 mm².
Conductor cross-section, min.: 0.75 mm².
Cross-section for connected wire: 0.75 - 6 mm².
