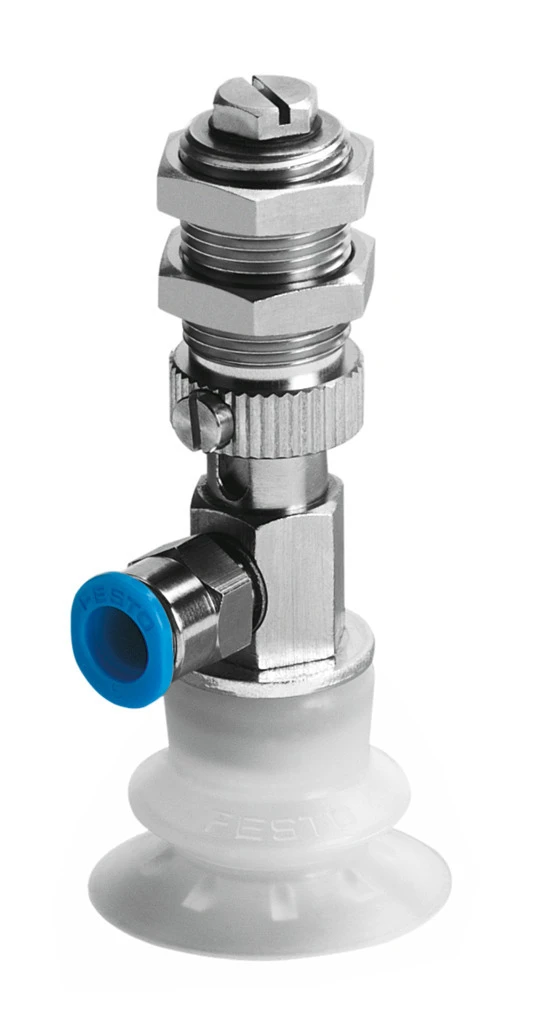

Suction gripper, ESG-8
SKU: 189170
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Suction grippers ESG – round design
• Suction cup diameter 8 mm
• Mounting position Vertical
• Special characteristics Antistatic
• Design Vacuum port on top, Vacuum port on side, With height compensator, With long height compensator
• Correlation to suction-cup holder Size 2
• Suction cup shape Round, flat
• Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
• Corrosion resistance class CRC 1 - Low corrosion stress
• Ambient temperature -30 °C ... 200 °C
• Vacuum connection M5, M10x1, QS-6, PK-4
• Note on materials RoHS-compliant
• Material suction cup BR, FPM, NBR, PUR, VMQ (silicone)
Buy currently uses Select Automation shop pricing and checkout.
Suction gripper, round ESG
• With approximately 5000 variants, the ESG series offers a very comprehensive range of solutions.
• You can choose from different material properties, suction cup shapes, temperature ranges and retaining brackets.
• Modular system of suction cup holders and suction cups with over 2000 variants
• Optionally with angle compensator, height compensator, filter
• Suction cup shape round, in 5 designs
• 15 suction cup diameters
• Suction cup volume: 0.002 … 245 cm³
• Min. workpiece radius: 10 … 680 mm
• Vacuum connection: push-in connector or barbed fitting for plastic tubing, threaded connection
