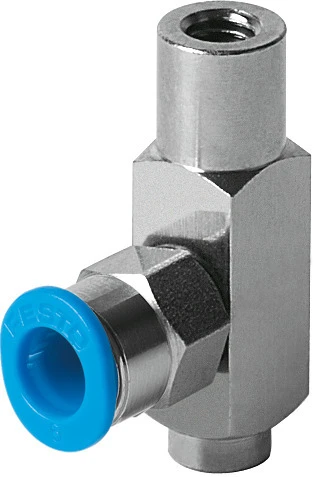

Suction cup complete holder, ESH-HB-1-QS
SKU: 189203
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Suction cup holders ESH-HB
• Nominal size 3 mm
• Volume 0.228 cm³
• Mounting position optional
• Design Vacuum port on side
• Correlation to suction-cup holder Size 1
• Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-A1-L
• Ambient temperature 0 °C ... 60 °C
• Product weight 5 g
• Type of mounting Via female thread
• Suction cup mounting Diameter 3 mm
• Vacuum connection QS-4
Buy currently uses Select Automation shop pricing and checkout.
Suction cup holder ESH
• With or without height compensator
• 6 holder sizes
• 8 holder types
• 3 different types of vacuum connections: push-in connection, barbed fitting, threaded connection
