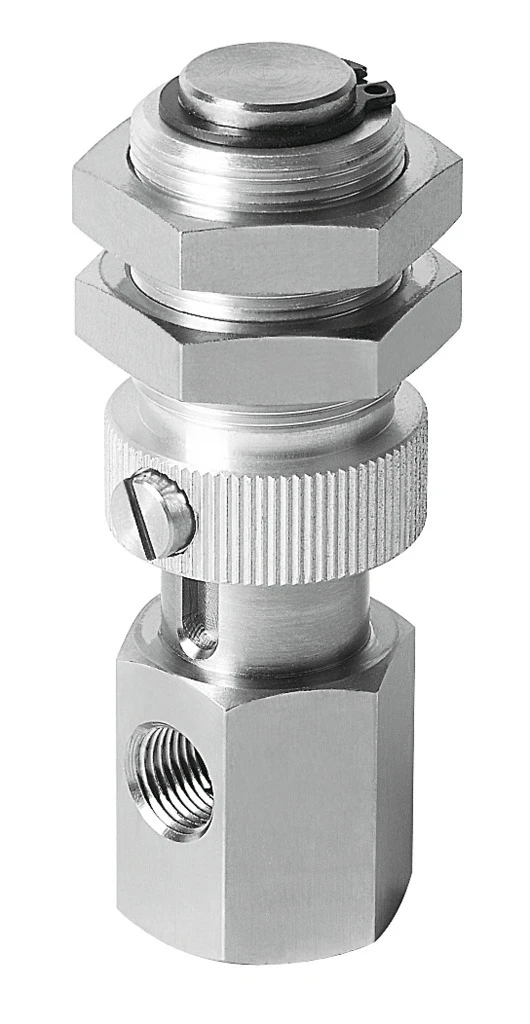

Suction cup complete holder, ESH-HD-6-G

Specifications • Suction cup holders ESH-HD • Height compensator for suction-cup holder 20 mm • Nominal size 10 mm • Volume 13.171 cm³ • Mounting position Vertical • Design Vacuum port on side, With height compensator • Correlation to suction-cup holder Size 6 • Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-] • Corrosion resistance class CRC 1 - Low corrosion stress • LABS (PWIS) conformity VDMA24364-A1-L • Ambient temperature -10 °C ... 60 °C • Product weight 472 g • Type of mounting Via lock nut • Suction cup mounting M20x2 • Vacuum connection G1/4
