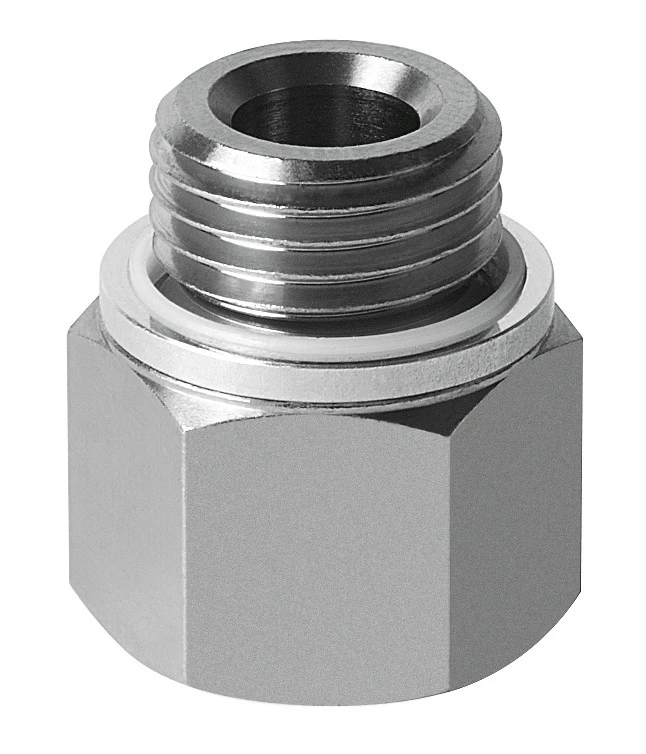

Suction cup complete holder, ESH-HE-5-G1/4
SKU: 189257
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Suction cup holders ESH-HE
• Nominal size 7 mm
• Volume 1.227 cm³
• Mounting position optional
• Design Vacuum port on top
• Correlation to suction-cup holder Size 5
• Operating medium Atmospheric air based on ISO 8573-1:2010 [7:-:-]
• Corrosion resistance class CRC 1 - Low corrosion stress
• LABS (PWIS) conformity VDMA24364-A1-L
• Ambient temperature -10 °C ... 60 °C
• Product weight 24 g
• Type of mounting Via male thread, Via vacuum port
• Suction cup mounting M10
• Vacuum connection G1/4
Buy currently uses Select Automation shop pricing and checkout.
Suction cup holder ESH
• With or without height compensator
• 6 holder sizes
• 8 holder types
• 3 different types of vacuum connections: push-in connection, barbed fitting, threaded connection
