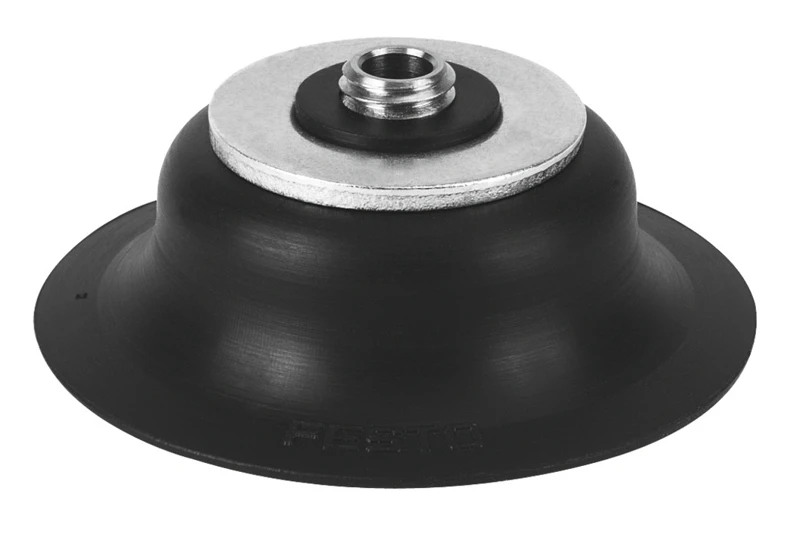

Suction cup complete, ESS-40-SN
SKU: 189304
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Suction cups with connector ESS, round, flat
• Min. workpiece radius 230 mm
• Nominal size 3 mm
• Suction cup diameter 40 mm
• Suction cup volume 1.566 cm³
• Position of connection Top
• Mounting position optional
• Symbol 00991485
• Correlation to suction-cup holder Size 4
• Suction cup shape Round, flat
• Operating pressure -0.095 MPa ... 0 MPa
• Operating pressure -0.95 bar ... 0 bar
• Operating pressure -13.775 psi ... 0 psi
• Material suction cup NBR
Buy currently uses Select Automation shop pricing and checkout.
Suction cup with connector ESS
• Suction cup consisting of the suction cup itself, plus the support plate with mounting
• Suction cup volume: 0.002 … 245 cm³
• Min. workpiece radius: 10 … 680 mm
• Mounting for suction cup holder: female thread, male thread, push-in connector
• Suction cup with mounting thread
