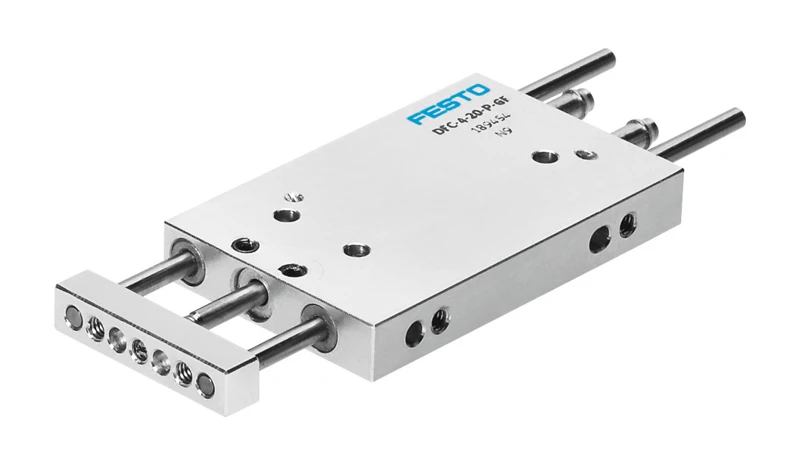

Mini guided drive, DFC-4-20-P-GF

Specifications • Mini guided drives DFC • Distance from centre of gravity of load to yoke plate xs 5 mm • Stroke 20 mm • Piston diameter 4 mm • Operating mode, drive unit Yoke • Cushioning Elastic cushioning rings/plates at both ends • Mounting position optional • Guide Plain-bearing guide • Design Guidance • Position detection Without • Symbol 00991738 • Operating pressure 0.35 MPa ... 0.7 MPa • Operating pressure 3.5 bar ... 7 bar • Max. speed 1 m/s • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 7.5 N
