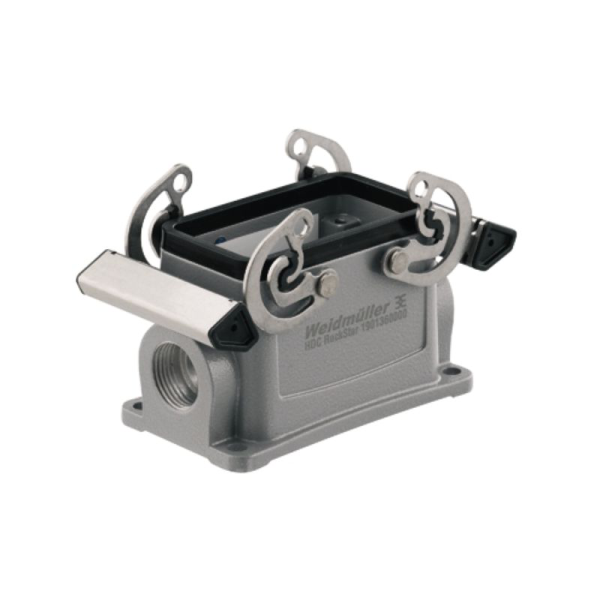

HDC 10B SBU 1M25G
SKU: 1901370000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC 10B SBU 1M25G:
The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
The beautifully built interlock mechanism is made of stainless steel.
This ensures a lengthy lifespan with strong corrosion and impact resistance.
The housing interlock system offers comprehensive safety.
Our proprietary spring system secures the housing interlock, preventing accidental opening.
The laser marking enables easy and quick identification.
Laser-marked housings provide for easy product identification and positioning.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 115.7 mm.
Depth (inches): 4.555 inch.
Height: 57 mm.
Height (inches): 2.244 inch.
Width: 53.5 mm.
Width (inches): 2.106 inch.
Mounting dimension - height: 43 mm.
Mounting dimension - width: 82 mm.
Net weight: 285 g.
Temperatures:
Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3.
SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
Chemical resistance:
Substance: Acetone.
Chemical resistance: Conditionally resistant.
Substance: Drilling oil.
Chemical resistance: Resistant.
Substance: Diesel.
Chemical resistance: Resistant.
Substance: Ethyl alcohol.
Chemical resistance: Resistant.
Substance: Transmission oil.
Chemical resistance: Resistant.
Substance: Hydraulic oil.
Chemical resistance: Resistant.
Substance: Coolant.
Chemical resistance: Resistant.
Substance: Petroleum benzine.
Chemical resistance: Resistant.
Substance: Sweat.
Chemical resistance: Resistant.
Substance: Premium gasoline.
Chemical resistance: Conditionally resistant.
Substance: Water.
Chemical resistance: Resistant.
Substance: UV.
Chemical resistance: Unstable.
Substance: Ozone.
Chemical resistance: Unstable.
eshop_Filter_00_General:
Weidmüller class short: Housing.
Weidmüller class target channel: Housing (industry plug-in connectors).
eshop_Filter_01_02_Connectors:
Product type: Enclosures.
Dimensions:
Cable entry: w. thread.
Height of base B1: 5 mm.
Height of housing B: 57 mm.
Hole pitch length A2: 82 mm.
Total length housing: 73 mm.
Width base C1: 53.5 mm.
Width housing C: 43 mm.
General data:
EMC housings: No.
Housing main material: diecast aluminium.
Material of locking element: Stainless steel, rust-proof.
Protection degree: IP65 (in plugged condition).
Surface finish: Powder coating.
Version:
BG: 4.
Cable entry: w. thread.
Clamp version: Side-locking clamp.
Colour (RAL): RAL 7035.
Design: Standard.
Design of housing: Base housing.
Design of locking system: Side-locking clamp on lower side.
Internal thread: M 25.
Number of cable entry on top: 0.
Number of cable entry sideways: 1.
Sealing: NBR.
Size: 4.
Size of cable entries: M 25.
Suitable for ModuPlug®: No.
Top part/bottom part/lid: lower part.
Type: Base housing.
