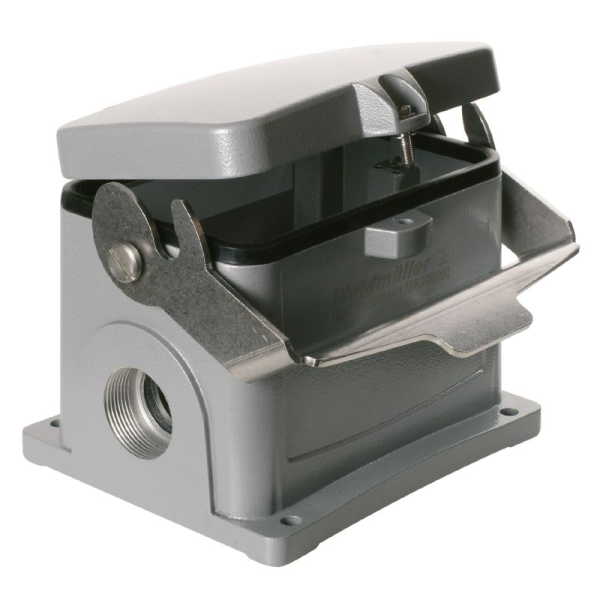

HDC 48B SDLU 1M32G
SKU: 1904150000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC 48B SDLU 1M32G:
The specific die-cast alloy and multi-layered surface sealing give comprehensive protection for the HDC housings.
The beautifully built interlock mechanism is made of stainless steel.
This ensures a long lifespan with strong resistance to corrosion and damage.
The housing interlock system offers comprehensive safety.
Our proprietary spring system secures the housing interlock and prevents it from being accidentally opened.
The laser marking enables easy and quick identification.
Laser-marked housings provide for easy product identification and positioning.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 143 mm.
Depth (inches): 5.63 inch.
Height: 120 mm.
Height (inches): 4.724 inch.
Width: 166.2 mm.
Width (inches): 6.543 inch.
Mounting dimension - height: 106 mm.
Mounting dimension - width: 111 mm.
Net weight: 1,580 g.
Temperatures:
Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: d447edfa-0214-4f34-b5ba-82eae491b46a.
Chemical resistance:
Substance: Acetone.
Chemical resistance: Conditionally resistant.
Substance: Drilling oil.
Chemical resistance: Resistant.
Substance: Diesel.
Chemical resistance: Resistant.
Substance: Ethyl alcohol.
Chemical resistance: Resistant.
Substance: Transmission oil.
Chemical resistance: Resistant.
Substance: Hydraulic oil.
Chemical resistance: Resistant.
Substance: Coolant.
Chemical resistance: Resistant.
Substance: Petroleum benzine.
Chemical resistance: Resistant.
Substance: Sweat.
Chemical resistance: Resistant.
Substance: Premium gasoline.
Chemical resistance: Conditionally resistant.
Substance: Water.
Chemical resistance: Resistant.
Substance: UV.
Chemical resistance: Unstable.
Substance: Ozone.
Chemical resistance: Unstable.
Dimensions:
Cable entry: w. thread.
Height of base B1: 10 mm.
Height of housing B: 120 mm.
Hole pitch length A2: 111 mm.
Total length housing: 132 mm.
Width base C1: 120 mm.
Width housing C: 90 mm.
General data:
EMC housings: No.
Housing main material: diecast aluminium.
Material of locking element: Stainless steel, rust-proof.
Protection class note: Protection class with secured cover: IP 65.
Protection degree: IP65 (in plugged condition).
Surface finish: Powder coating.
Tightening torque: 1.2 Nm.
Version:
BG: 12.
Cable entry: w. thread.
Clamp version: End-locking clamp.
Colour (RAL): RAL 7035.
Cover: with cover.
Design: Standard.
Design of cover: with cover.
Design of housing: Base housing.
Design of locking system: End-locking clamp, lower side.
Internal thread: M 32.
Number of cable entry on top: 0.
Number of cable entry sideways: 1.
Sealing: NBR.
Size: 12.
Size of cable entries: M 32.
Suitable for ModuPlug®: Yes.
Tightening torque: 1.2 Nm.
Top part/bottom part/lid: lower part.
Type: Base housing.
