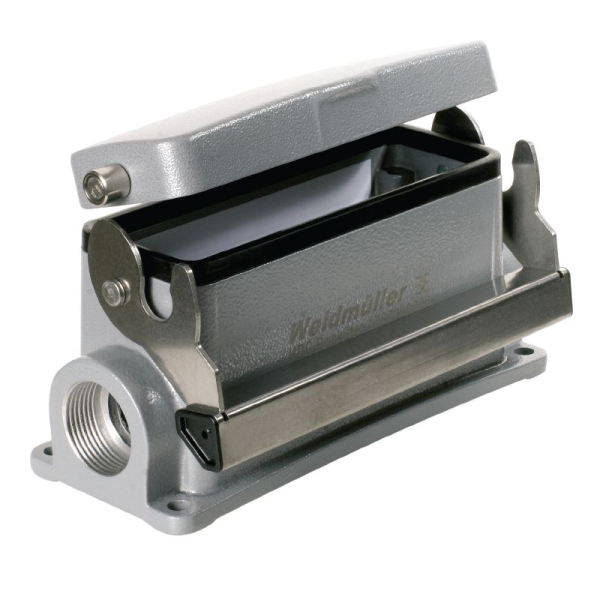

HDC 64D SDLU 1M32G
SKU: 1904440000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
HDC 64D SDLU 1M32G:
The HDC housings are fully protected by its die-cast metal and multi-layered surface sealing.
The beautifully built interlock mechanism is made of stainless steel.
This ensures a lengthy lifespan with strong corrosion and impact resistance.
The housing interlock system offers comprehensive safety.
Our exclusive, patent-pending spring mechanism gives the housing interlock a firm hold and guards against unintentional opening.
The laser marking enables easy and quick identification.
Each housing is permanently branded with a laser marking, allowing each product to be instantly identified and positioned.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings are your top choice for industrial housings with IP 65 protection.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Height: 106 mm.
Height (inches): 4.173 inch.
Width: 98.8 mm.
Width (inches): 3.89 inch.
Mounting dimension - height: 45 mm.
Mounting dimension - width: 132 mm.
Net weight: 636 g.
Temperatures:
Limit temperature: -40 °C... 125 °C.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1, Potassium perfluorobutane sulfonate 29420-49-3.
SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f.
Chemical resistance:
Substance: Acetone.
Chemical resistance: Conditionally resistant.
Substance: Drilling oil.
Chemical resistance: Resistant.
Substance: Diesel.
Chemical resistance: Resistant.
Substance: Ethyl alcohol.
Chemical resistance: Resistant.
Substance: Transmission oil.
Chemical resistance: Resistant.
Substance: Hydraulic oil.
Chemical resistance: Resistant.
Substance: Coolant.
Chemical resistance: Resistant.
Substance: Petroleum benzine.
Chemical resistance: Resistant.
Substance: Sweat.
Chemical resistance: Resistant.
Substance: Premium gasoline.
Chemical resistance: Conditionally resistant.
Substance: Water.
Chemical resistance: Resistant.
Substance: UV.
Chemical resistance: Unstable.
Substance: Ozone.
Chemical resistance: Unstable.
eshop_Filter_01_02_Connectors:
Product type: Enclosures.
Dimensions:
Cable entry: w. thread.
Height of base B1: 5 mm.
Height of housing B: 84 mm.
Hole pitch length A2: 132 mm.
Total length housing: 120 mm.
Width base C1: 57.5 mm.
Width housing C: 43 mm.
General data:
EMC housings: No.
Housing main material: diecast aluminium.
Material of locking element: Stainless steel, rust-proof.
Protection class note: Protection class with secured cover: IP 65.
Protection degree: IP65 (in plugged condition).
Surface finish: Powder coating.
Version:
BG: 8.
Cable entry: w. thread.
Clamp version: End-locking clamp.
Colour (RAL): RAL 7035.
Cover: with cover.
Design: high.
Design of cover: with cover.
Design of housing: Base housing.
Design of locking system: End-locking clamp, lower side.
Internal thread: M 32.
Number of cable entry on top: 0.
Number of cable entry sideways: 1.
Sealing: NBR.
Size: 8.
Size of cable entries: M 32.
Suitable for ModuPlug®: Yes.
Top part/bottom part/lid: lower part.
Type: Base housing.
