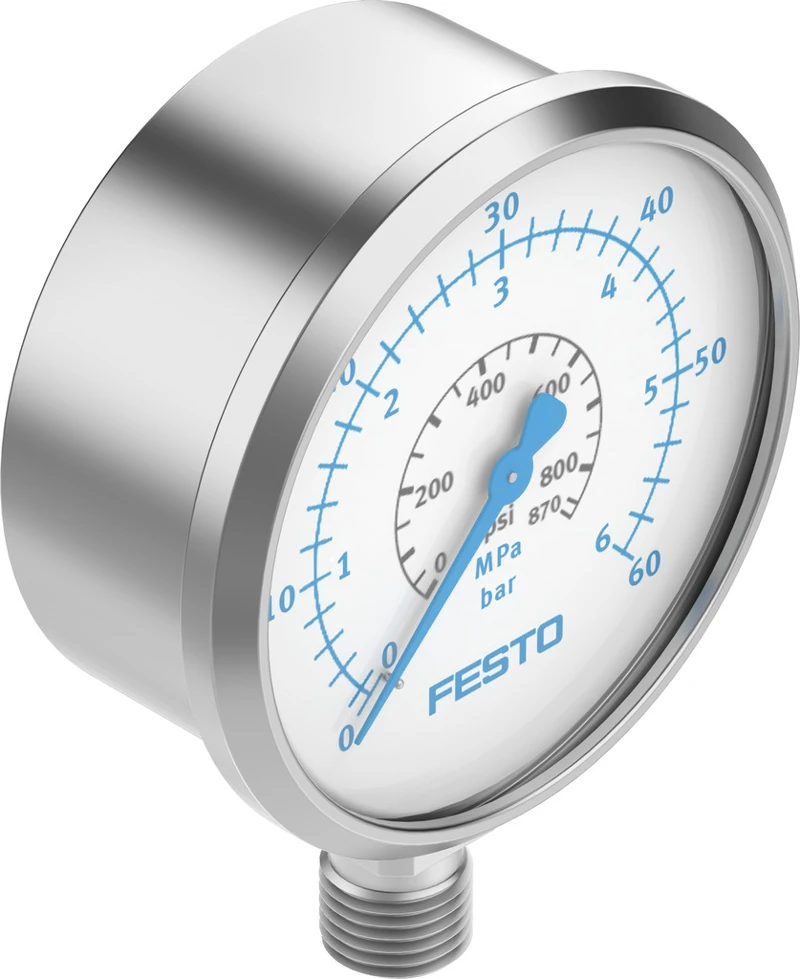

Pressure gauge, PAGL-HP3-63-60-G14-RC
SKU: 1908519
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pneumatic components for high-pressure applications, series L
• Accessories, Pressure gauge
• Type of mounting In-line installation
• Pneumatic connection G1/4
• Measurement accuracy class 1.6
• Indicating range 0 bar ... 60 bar
• Indicating range 0 MPa ... 6 MPa
• Indicating range 0 psi ... 870 psi
• Symbol 00991463
• Conforms to standard EN 837-1
• Nominal size of pressure gauge 63
• Explosion protection The information in the certificate must be observed! Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
• Design Bourdon tube pressure gauge
Buy currently uses Select Automation shop pricing and checkout.
Pressure gauge PAGL
• Pressure gauge to DIN EN 837-1 for front-panel or in-line installation with display range up to 60 bar / 870 psi / 6 Mpa.
• For high-pressure applications
• Display units bar, psi, Mpa
