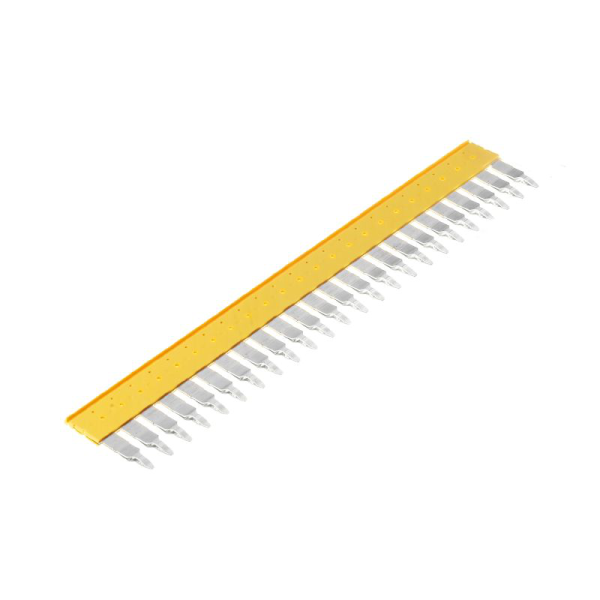

ZQV 6/24 GE
SKU: 1908990000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The plug-in cross-connections are easy to use and take a little time to install.
Compared to screwed solutions, this installation method saves a significant amount of time.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Accessories, Cross-connector, 41 A.
Quantity: 10.
Depth: 33.96 mm.
Height: 192.5 mm.
Width: 3.1 mm.
Storage temperature: -25 °C...55 °C.
Continuous operating temp., min: -60 °C.
Continuous operating temp., max: 130 °C.
Material: Wemid.
Color: yellow.
UL 94 flammability rating: V-0.
Installation advice: Direct mounting.
Type of fixing: Plugged.
Type: Cross-connector.
Rated current, 2-pole: 41 A.
Rated current, multi-pole: 41 A.
Pitch in mm (P): 8.1 mm.
Number of poles: 24.
Rating data:
Rated voltage: 400 V.
Rated DC voltage: 400 V.
Rated current: 41 A.
