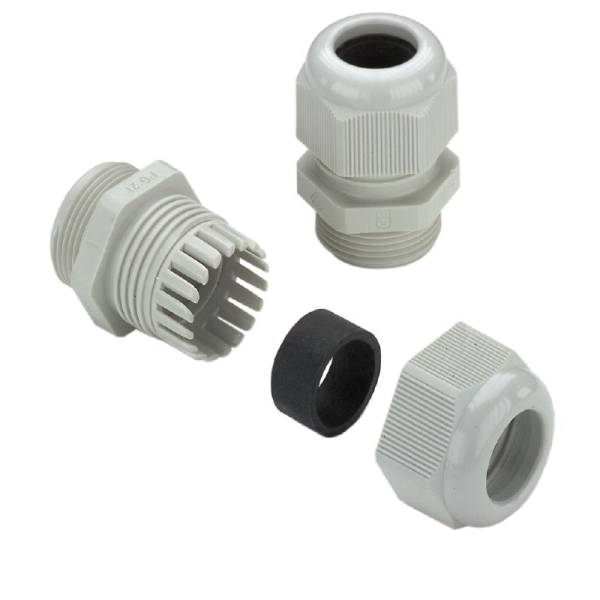

VG M25-1/K68, Cable glands, straight, M 25
SKU: 1909870000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A common plastic cable gland for safe and dependable cable entry in industrial applications is the Weidmüller VG M25-1/K68.
This type is a member of the VG series from Weidmüller, which is renowned for its robust and high-quality parts.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: VG M25-1/K68.
Item Number: 1909870000.
Type: Standard plastic cable gland.
Thread Type: M25.
Cable Diameter Range:
Minimum: 11 mm.
Maximum: 17 mm.
Ingress Protection:
IP54 (without sealing ring).
IP66, IP67, IP68 (with sealing ring, up to 5 bar for 30 minutes).
Material: Polyamide 6.
Dimensions:
Height: 34 mm.
Length: 43 mm.
Net Weight: 16.1 g.
Temperature Range: Operating: -40°C to +100°C.
Torque:
Clamping: 3.5 Nm.
Locking: 4 Nm to 5.5 Nm.
Compliance:
REACH Conformity: Yes.
RoHS Conformity: Yes.
