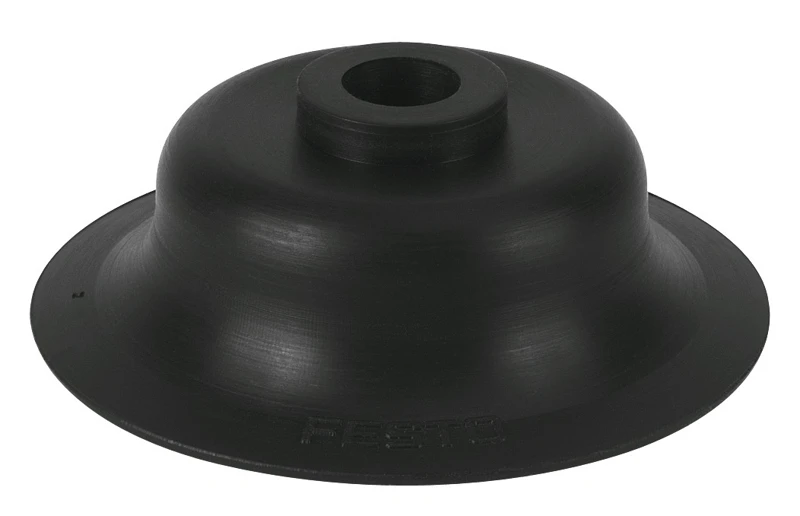

Suction cup without connector, ESV-30-SNA

Specifications • Suction cups without connector ESV, round, flat • Min. workpiece radius 110 mm • Suction cup diameter 30 mm • Suction cup volume 0.867 cm³ • Position of connection Top • Mounting position optional • Special characteristics Antistatic • Symbol 00991485 • Suction cup shape Round, flat • Operating pressure -0.095 MPa ... 0 MPa • Operating pressure -0.95 bar ... 0 bar • Operating pressure -13.775 psi ... 0 psi • Nominal operating pressure -0.07 MPa • Nominal operating pressure -0.7 bar • Nominal operating pressure -10.15 psi • Material suction cup NBR
