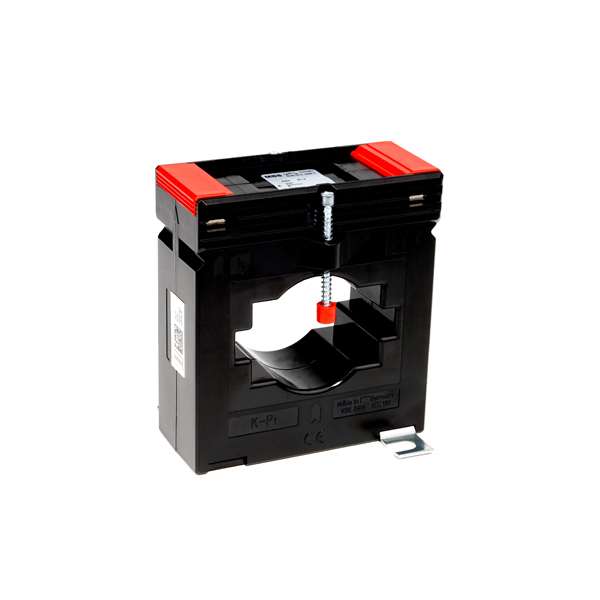

ASK 61.4 1250/5A CT cl 0.5
SKU: 19101
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Standards for general current transformers:
E is the isolation class.
Nominal frequency: 50Hz (others per request)
Maximum operating voltage: Um ≤ 0.72 kV
Thermal short-time current nominal: Ith = 60 x In
FS 5 is the over-current limiting factor up to 1500 A nominal current.
MBS AG current transformers completely abide by: IEC 61869/1+2 - DIN 42600 - VBG 4 - DIN VDE 0414/1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Class 0.5 current transformers 5A secondary (class 0.2 available on request)
ASK 61.4 current transformers
MODEL: ASK 61.4
RATIO: 1250/5A
ROUND CONDUCTOR (⌀): 44 mm
PRIMARY BAR CONDUCTOR: 60 X 10 / 50 X 20 mm
DESCRIPTION: Standard current transformer
CLASS: 0.5
VA: 30
DIMENSIONS (MM): (H) 106 x (W) 96 x (D) 58
