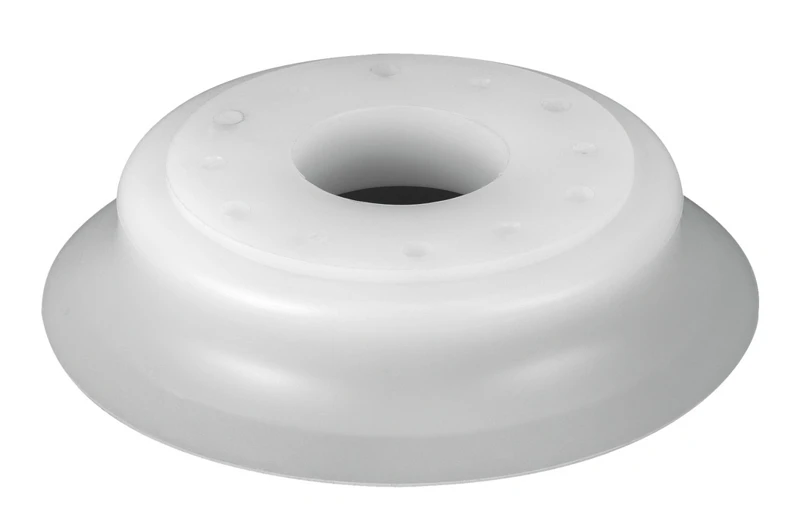

Suction cup without connector, ESV-80-ES

Specifications • Suction cups without connector ESV, round, extra-deep • Min. workpiece radius 160 mm • Suction cup diameter 80 mm • Suction cup volume 44.18 cm³ • Position of connection Top • Mounting position optional • Symbol 00991485 • Suction cup shape Round extra deep • Operating pressure -0.095 MPa ... 0 MPa • Operating pressure -0.95 bar ... 0 bar • Operating pressure -13.775 psi ... 0 psi • Nominal operating pressure -0.07 MPa • Nominal operating pressure -0.7 bar • Nominal operating pressure -10.15 psi • Material suction cup VMQ (silicone)
