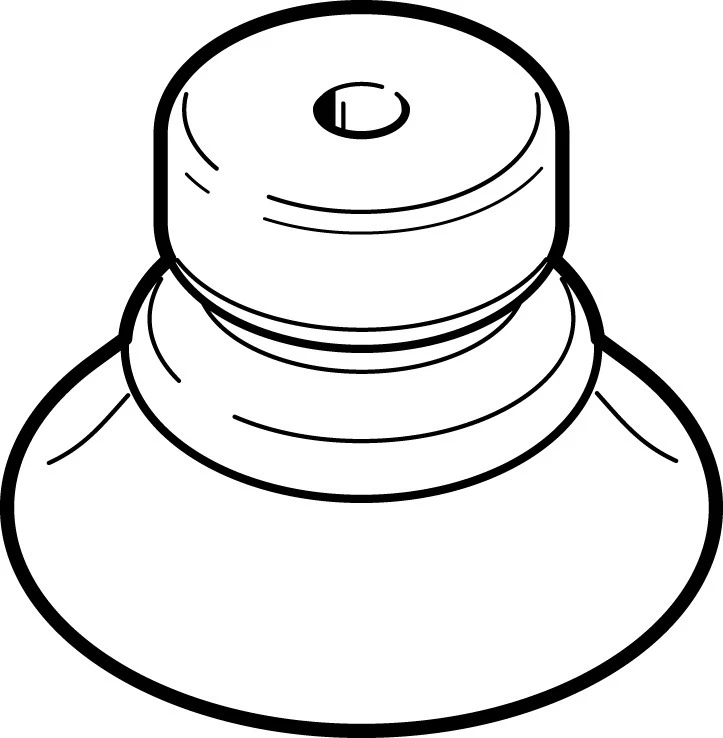

Suction cup without connector, ESV-50-BU

Specifications • Suction cups without connector ESV, round, protective bellows with 1.5 convolutions • Height compensator for suction cup 11 mm • Min. workpiece radius 150 mm • Suction cup diameter 50 mm • Suction cup volume 14.23 cm³ • Position of connection Top • Mounting position optional • Symbol 00991485 • Suction cup shape Round bellows 1.5 convolutions • Operating pressure -0.095 MPa ... 0 MPa • Operating pressure -0.95 bar ... 0 bar • Operating pressure -13.775 psi ... 0 psi • Material suction cup PUR
