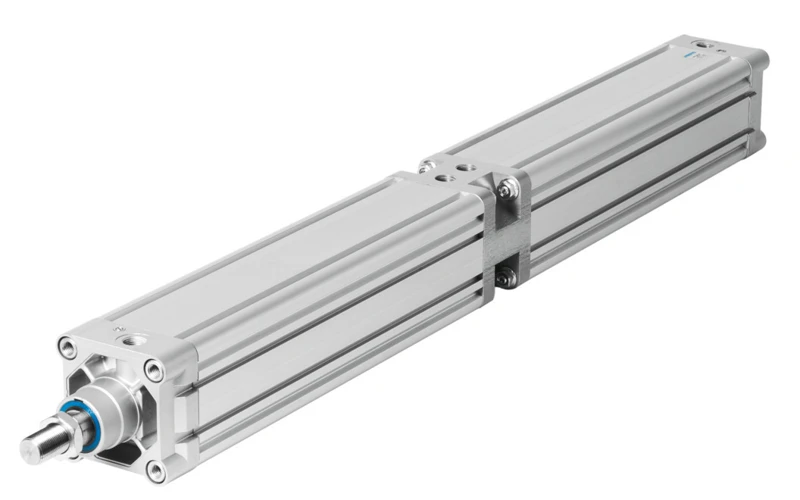

Tandem cylinder, DNCT-63-...-PPV-A

Specifications • Tandem cylinders DNCT, standard hole pattern • Stroke 3 mm ... 500 mm • Piston diameter 63 mm • Based on standard ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) • Cushioning Pneumatic cushioning, adjustable at both ends • Mounting position optional • Mode of operation Double-acting • Piston-rod end Male thread • Design Piston, Piston rod, Profile barrel • Position detection Via proximity switch • Symbol 00995911 • Variants Piston rod at one end • Operating pressure 0.06 MPa ... 1 MPa • Operating pressure 0.6 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 3552 N
