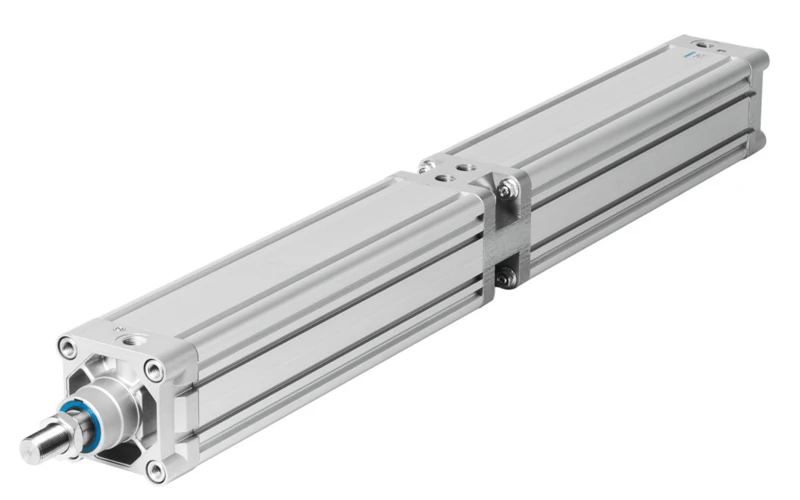

Tandem cylinder, DNCT-40-...-PPV-A-S6

Specifications • Tandem cylinders DNCT, standard hole pattern • Stroke 2 mm ... 500 mm • Piston diameter 40 mm • Based on standard ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) • Cushioning Pneumatic cushioning, adjustable at both ends • Mounting position optional • Mode of operation Double-acting • Piston-rod end Male thread • Design Piston Piston rod, Profile barrel • Position detection Via proximity switch • Symbol 00995911 • Variants Heat-resistant seals max. 120°C • Operating pressure 0.06 MPa ... 1 MPa • Operating pressure 0.6 bar ... 10 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 1387 N
