CLI C 02-36 SDR SG
SKU: 1912600000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

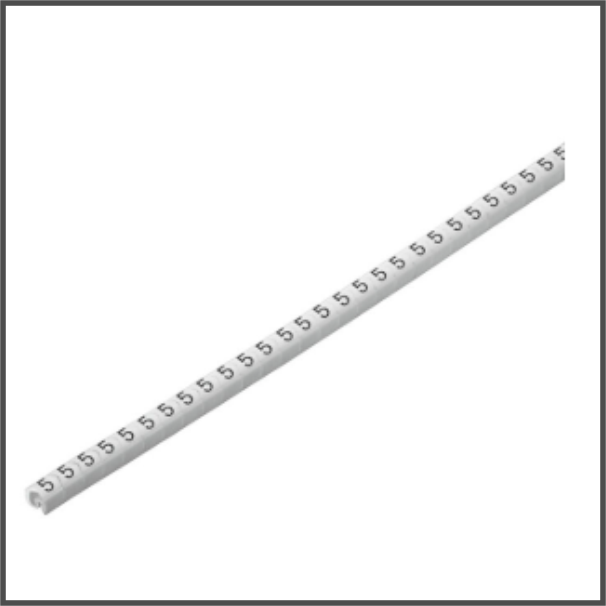

CLI C conductor markings are attached to unconnected conductors.
There are four sizes available for labelling conductor cross-sections, ranging from 0.5 mm2 to 70 mm2.
The markers are already printed and ready to use.
Individual labelling is achieved by mixing individual markers.
Buy currently uses Select Automation shop pricing and checkout.
Advantages:
Closed markers, reliable and for mounting on unconnected cables.
A special flexible bellow profile ensures a wide application range.
Fast and easy to fit – with minimal effort.
Corresponding accessories make labelling easy.
Permanent, high-quality labelling.
High contrast for optimum legibility.
Specifications:
Version: Cable Line, Conductor and cable markers.
Quantity: 100.
Depth: 3.5 mm.
Height: 36 mm.
Width: 3.4 mm.
Operating temperature range: 80 °C.
Colour: To customer specification.
Colour of printing: black.
Halogen.
Material: PVC, soft, without Cadmium.
Orientation of print: horizontal
Printed characters: To customer specification.
Printing: Custom printing.
Printing method: Ink jet technology.
Type of printing: To customer specification.
UL 94 flammability rating: V-0.
Conductor and cable markers:
Conductor O.D.: 1.3 - 3 mm.
Conductor O.D., max.: 3 mm.
Conductor O.D., min.: 1.3 mm.
Conductor cross-section, max.: 1.5 mm².
Conductor cross-section, min.: 0.2 mm².
Cross-section for connected wire: 0.2 – 1.5 mm².
