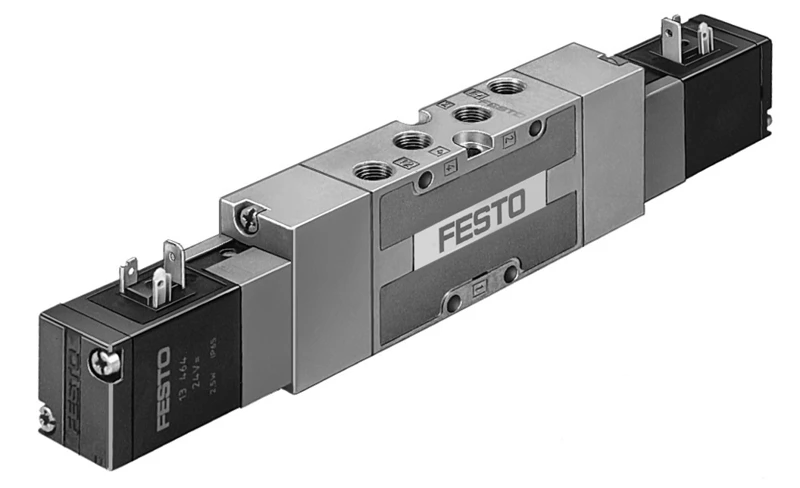

Solenoid valve, MVH-5/3E-1/4-B

Specifications • Solenoid valves MVH-B, Tiger 2000 • Valve function 5/3 exhausted • Type of actuation Electric • Construction width 32 mm • Standard nominal flow rate (standardised to DIN 1343) 1600 l/min • Pneumatic working port G1/4 • Operating pressure 0.3 MPa ... 1 MPa • Operating pressure 3 bar ... 10 bar • Design Piston gate valve • Type of reset Mechanical spring • Nominal size 10 mm • Grid dimension 33 mm • Exhaust-air function With flow control option • Sealing principle Soft • Mounting position optional
