SF 3/21 MC NE WS V2
SKU: 1918910000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

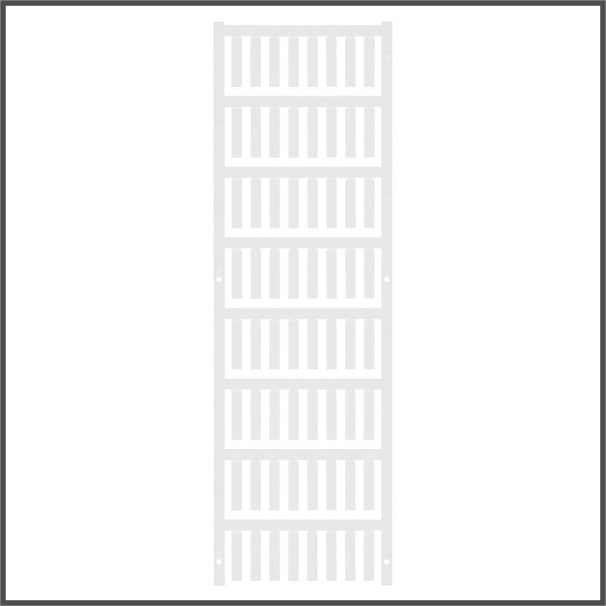

SF 3/21 MC NE WS V2:
Conductor and cable markers with a compact design are called SlimFix.
The markers can be attached even after the conductor has been installed.
They are made of non-halogen materials and meet V0/V2 flammability standards.
A recognized and approved marker type for traffic engineering purposes is SlimFix.
Even with small markers, the SF tool enables for straightforward installation.
Advantages:
Halogen-free material.
Flammability rating: V0/V2.
Certified and authorized markers for use in traffic engineering, etc.
Cable ties are required for conductors having a cross-section bigger than 16.0 mm².
Markers in the well-established MultiCard format.
Buy currently uses Select Automation shop pricing and checkout.
Dimensions and weights:
Depth: 4.8 mm.
Depth (inches): 0.189 inch.
Height: 21 mm.
Height (inches): 0.827 inch.
Width: 4.6 mm.
Width (inches): 0.181 inch.
Net weight: 0.404 g.
Temperatures:
Operating temperature range: -40...100 °C.
Environmental Product Compliance:
REACH SVHC: /.
RoHS Compliance Status: Compliant without exemption.
General data:
Colour: White.
compatible printer: PRINTJET CONNECT.
Halogen: No.
Material: Polyamide 66.
Number of markers per combination: 1 MultiCard = Conductor and cable markers.
Number of markers per packaging unit:
Form of supply: MultiCard.
Operating temperature range: -40...100 °C.
Operating temperature range, max.: 100 °C.
Operating temperature range, min.: -40 °C.
Recommended industries: Transportation, Machinery.
Size of labelling field: 21 x 4.6 mm.
Type of printing: neutral.
UL 94 flammability rating: V-2.
Width: 4.6 mm.
Conductor and cable markers:
Conductor cross-section, max.: 2.5 mm².
Conductor cross-section, min.: 1.5 mm².
Conductor O.D.: 3 - 3.7 mm.
Conductor O.D., max.: 3.7 mm.
Conductor O.D., min.: 3 mm.
Cross-section for connected wire: 1.5 - 2.5 mm².
Halogen: No.
