SF 0/12 MC NE WS V2
SKU: 1919240000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

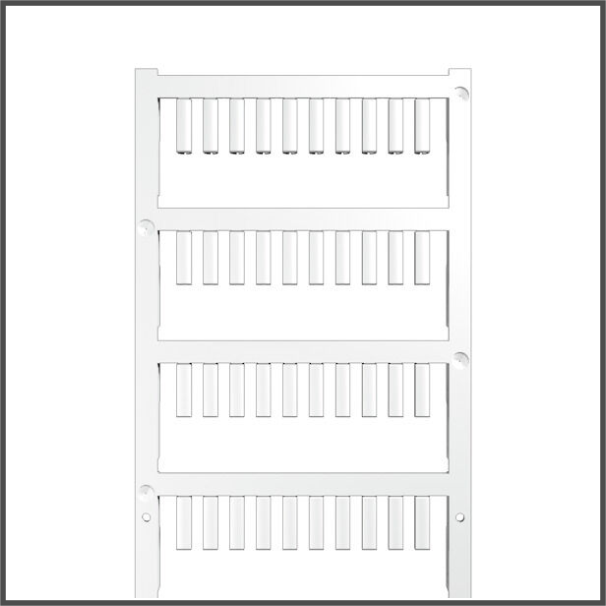

Conductor and cable markers with a compact design are called Slim Fix.
The markers can be attached even after the conductor has been installed.
They are made from halogen-free material and have a flammability rating of V0/V2.
A recognized and approved marker type for traffic engineering purposes is Slim Fix.
Even with small markers, the SF tool enables straightforward installation.
Buy currently uses Select Automation shop pricing and checkout.
Advantages:
Halogen-free material.
Flammability rating V0/V2.
Approved and accredited markers for traffic engineering applications, etc.
Must be fixed with cable ties if the conductor cross section is larger than 16.0 mm².
Markers in proven Multi Card format.
Specifications:
Version: Slim Fix, Conductor and cable markers.
Quantity: 400.
Depth: 3.2 mm.
Height: 12 mm.
Width: 3.2 mm.
Operating temperature range: -40...100 °C.
Colour: white.
No Halogen.
Material: Polyamide 66.
Material colour according to resistance code: 9.
Number of markers per combination: 1 Multi Card = Conductor and cable markers.
Size of labelling field: 12 x 3.2 mm.
Type of printing: neutral.
UL 94 flammability rating: V-2.
Conductor and cable markers:
Conductor O.D.: 1.2 – 1.6 mm.
Conductor O.D., max.: 1.6 mm.
Conductor O.D., min.: 1.2 mm.
Conductor cross-section, max.: 0.5 mm².
Conductor cross-section, min.: 0.25 mm².
Cross-section for connected wire: 0.25 – 0.5 mm².
