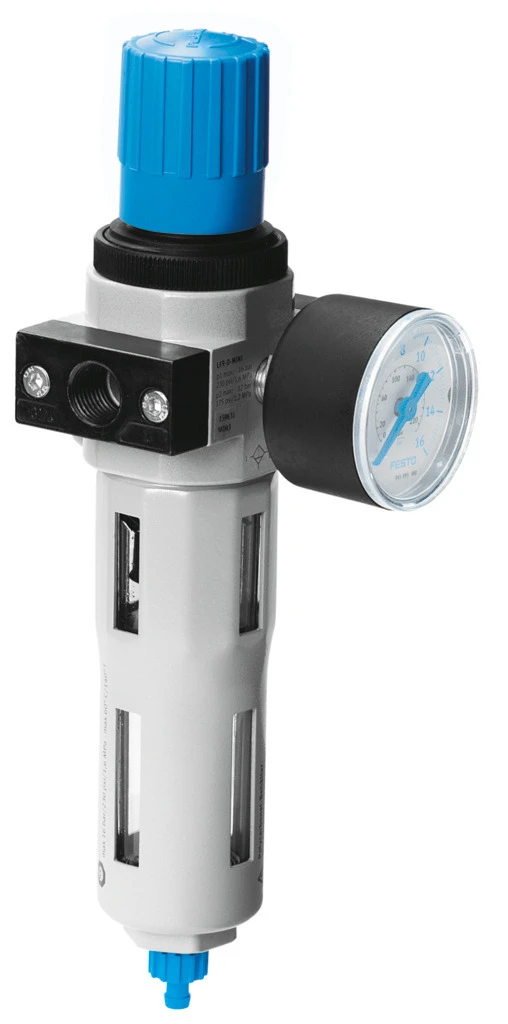

Filter regulator, LFR-3/4-D-5M-DI-MAXI-A

Specifications • Filter regulator LFR, LFRS • Size Maxi • Series D • Actuator lock Rotary knob with detent • Mounting position Vertical +/-5° • Grade of filtration 5 µm • Condensate drain Fully automatic • Design Filter regulator with pressure gauge • Max. condensate volume 43 ml • Bowl guard Metal bowl guard • Symbol 00991587 • Pressure gauge (ANALOG) or Pressure display (DIGITAL) With pressure gauge • Operating pressure 0.2 MPa ... 1.2 MPa • Operating pressure 2 bar ... 12 bar • Pressure regulation range 0.5 bar ... 12 bar • Pneumatic connection, port 1 G3/4 • Standard nominal flow rate (standardised to DIN 1343) 5800 l/min
