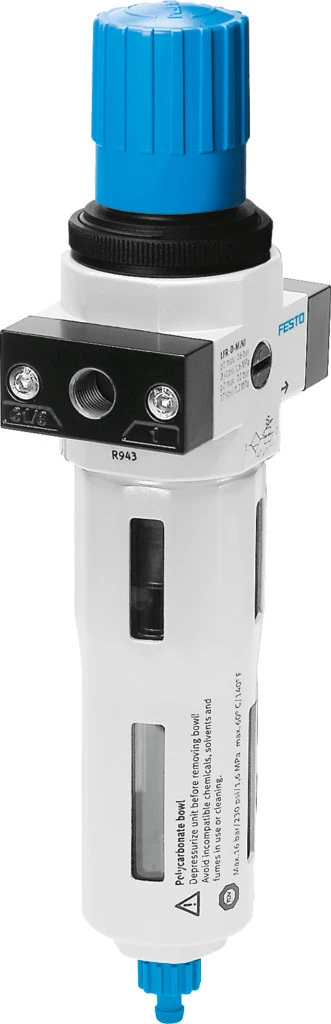

Filter regulator, LFR-3/4-D-7-O-MIDI-A

Specifications • Filter regulator LFR, LFRS • Size Midi • Series D • Actuator lock Rotary knob with detent • Mounting position Vertical +/-5° • Grade of filtration 40 µm • Condensate drain Fully automatic • Design Filter regulator without pressure gauge • Max. condensate volume 43 ml • Bowl guard Metal bowl guard • Symbol 00991584 • Pressure gauge (ANALOG) or Pressure display (DIGITAL) Prepared for G1/4 • Operating pressure 2 bar ... 12 bar • Pressure regulation range 0.5 bar ... 7 bar • Pneumatic connection, port 1 G3/4 • Standard nominal flow rate (standardised to DIN 1343) 4000 l/min
