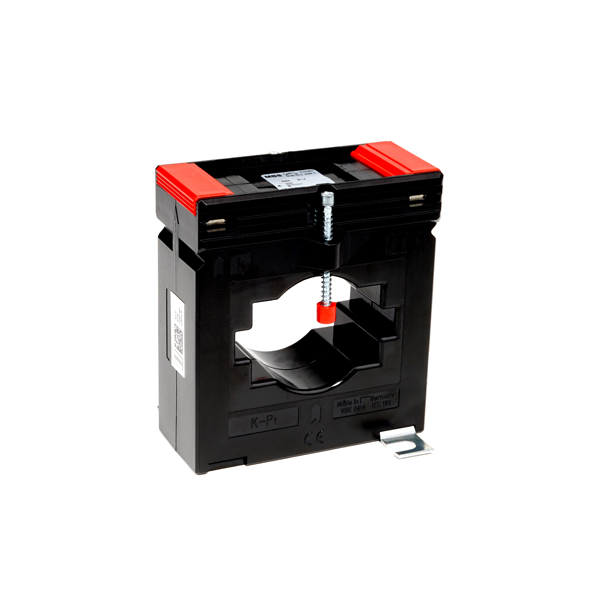

ASK 61.4 600/1A CT cl 1
SKU: 19265
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
General parameters for current transformers:
Class of isolation: E
Nominal frequency: 50 Hz (others upon request)
Maximum operational voltage: Um ≤ 0.72 kV
Ith = 60 x In is the nominal thermal short-time current.
Over-current limiting factor: FS 5 for nominal currents up to 1500 A
MBS AG current transformers completely abide by: VBG 4 - IEC 61869/1+2 - DIN 42600 - DIN VDE 0414/1
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Standard current transformers (1A secondary - class 1)
ASK 61.4 current transformers
MODEL: ASK 61.4
RATIO: 600/1A
ROUND CONDUCTOR (⌀): 44 mm
PRIMARY BAR CONDUCTOR: 60 X 10 / 50 X 20 mm
DESCRIPTION: Standard current transformer
CLASS: 1
VA: 15
DIMENSIONS (MM): (H) 106 x (W) 96 x (D) 58
