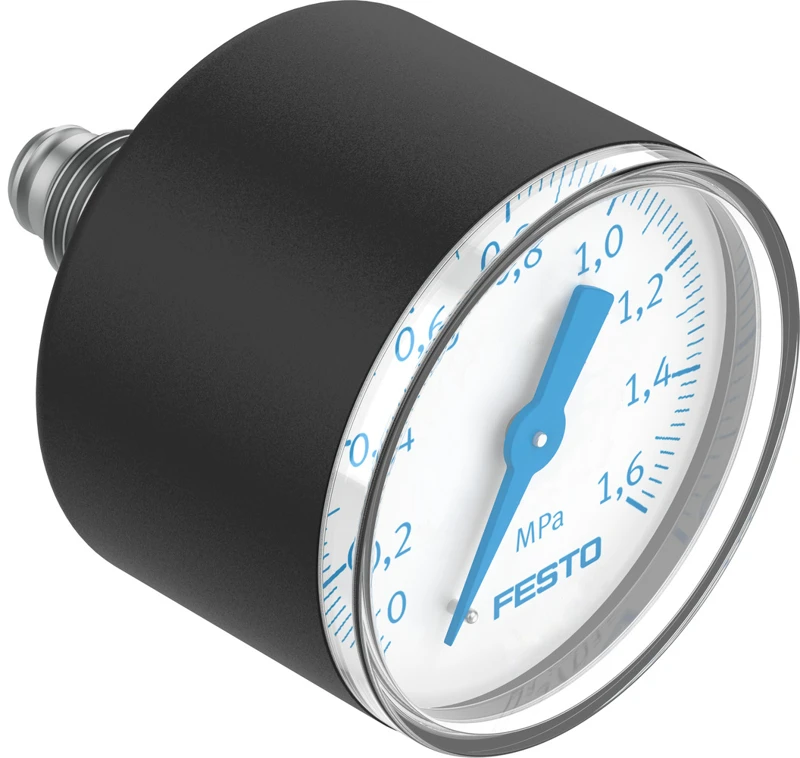

Pressure gauge, MA-40-1,6-G1/8-MPA
SKU: 192733
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Pressure gauge MA
• Indicating range 0 MPa ... 1.6 MPa
• Symbol 00991463
• Conforms to standard EN 837-1
• Nominal size of pressure gauge 40
• Explosion protection The information in the certificate must be observed! Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
• Design Bourdon tube pressure gauge
• Type of mounting In-line installation
• Operating medium Inert gases, Neutral fluids
• Operating pressure 0 MPa ... 1.6 MPa
• Operating pressure 0 bar ... 16 bar
• Operating pressure 0 psi ... 232 psi
• Alternating load factor 0.66
• Measurement accuracy class 2.5
• Pneumatic connection G1/8
Buy currently uses Select Automation shop pricing and checkout.
Pressure gauge MA
• Pressure gauge to DIN EN 837-1 for front-panel or in-line installation with display range up to 16 bar or 230 psi.
• Designs based on DIN EN 837-1, available with red-green range
• Pneumatic connection via R, G or metric thread, push-in connector
• Display units bar, psi, MPa
