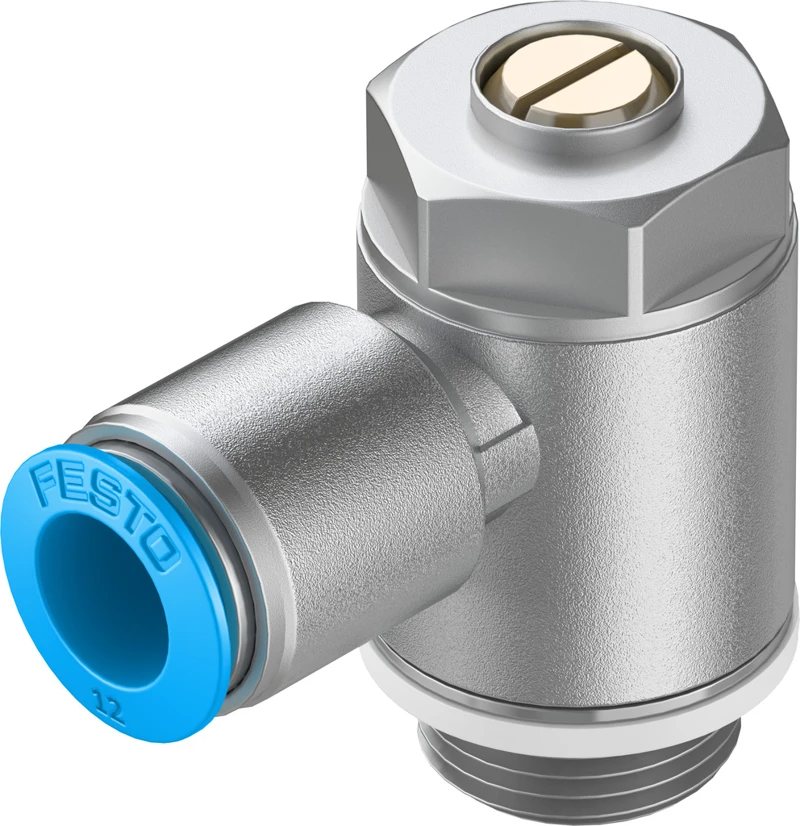

One-way flow control valves, GRLA-1/2-QS-12-D
SKU: 193152
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• One-way flow control valves GRLA, GRLZ
• Valve function Exhaust air one-way flow control function
• Pneumatic connection, port 1 QS-12
• Pneumatic connection, port 2 G1/2
• Adjustment component Slotted head screw
• Type of mounting Screw-in
• Standard nominal flow rate in flow control direction 1580 l/min
• Standard nominal flow rate in blocked direction 925 l/min ... 1605 l/min
• Ambient temperature -10 °C ... 60 °C
• Maritime classification See certificate
• Mounting position optional
Buy currently uses Select Automation shop pricing and checkout.
One-way flow control valves GRLA, GRLZ
• Sturdy metal design
• Can be swivelled 360° around the screw-in axis after mounting
• Push-in connector
• Flow rate 100 … 1580 l/min
• GRLA-QS-D/GRLZ-QS-D: with slotted head screw
• GRLA-QS-RS-D: with knurled screw
