Connecting cable, KMYZ-2-24-10-LED
SKU: 193443
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications

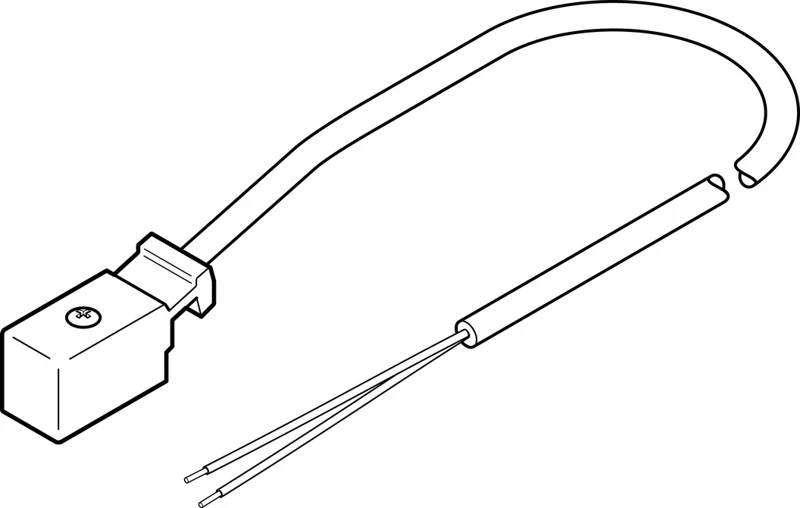

• Connecting cable KMYZ
• Switching position indicator LED
• Type of mounting On solenoid valve via self-tapping screw
• Mounting position optional
• Product weight 170 g
• Electrical connection 2-pin/2-wire, Angled socket/cable, Square design/open end
• Nominal operating voltage DC 24 V
• Current rating at 40° C 1 A
• Protective conductor connection Not available
• Cable length 10 m
• Cable characteristic Standard
Buy currently uses Select Automation shop pricing and checkout.
Connecting cable KMYZ
• For solenoid coils with plug pattern ZB
• For solenoid coils with plug pattern ZC
• Cable length 0.5 ... 10 m
• With PVC or PUR cable
• Ambient temperature -10 … +50 °C
