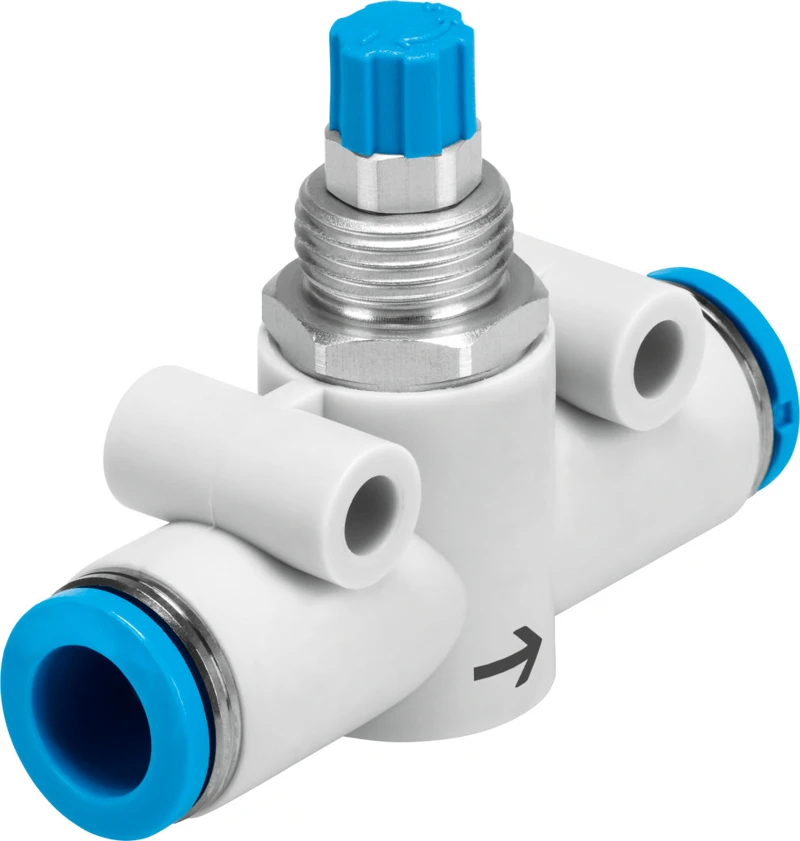

One-way flow control valve, GR-QS-8

Specifications • Flow sensor SFAB • Accessories, One-way flow control valve • Valve function One-way flow control function • Pneumatic connection, port 1 QS-8 • Pneumatic connection, port 2 QS-8 • Adjustment component Knurled screw • Type of mounting Either: Front panel mounting, With through-hole, With accessories • Standard nominal flow rate in flow control direction 265 l/min • Standard nominal flow rate in blocked direction 500 l/min • Operating pressure 0.2 bar ... 10 bar • Ambient temperature -10 °C ... 60 °C • Material housing PA-reinforced • Explosion protection The information in the certificate must be observed! Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
